2CSF204199R1250

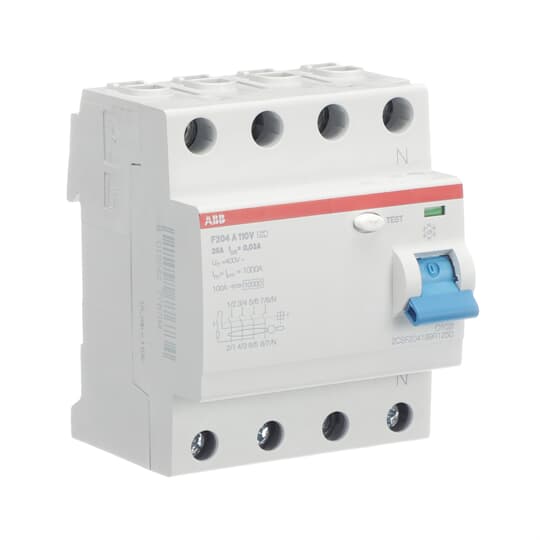

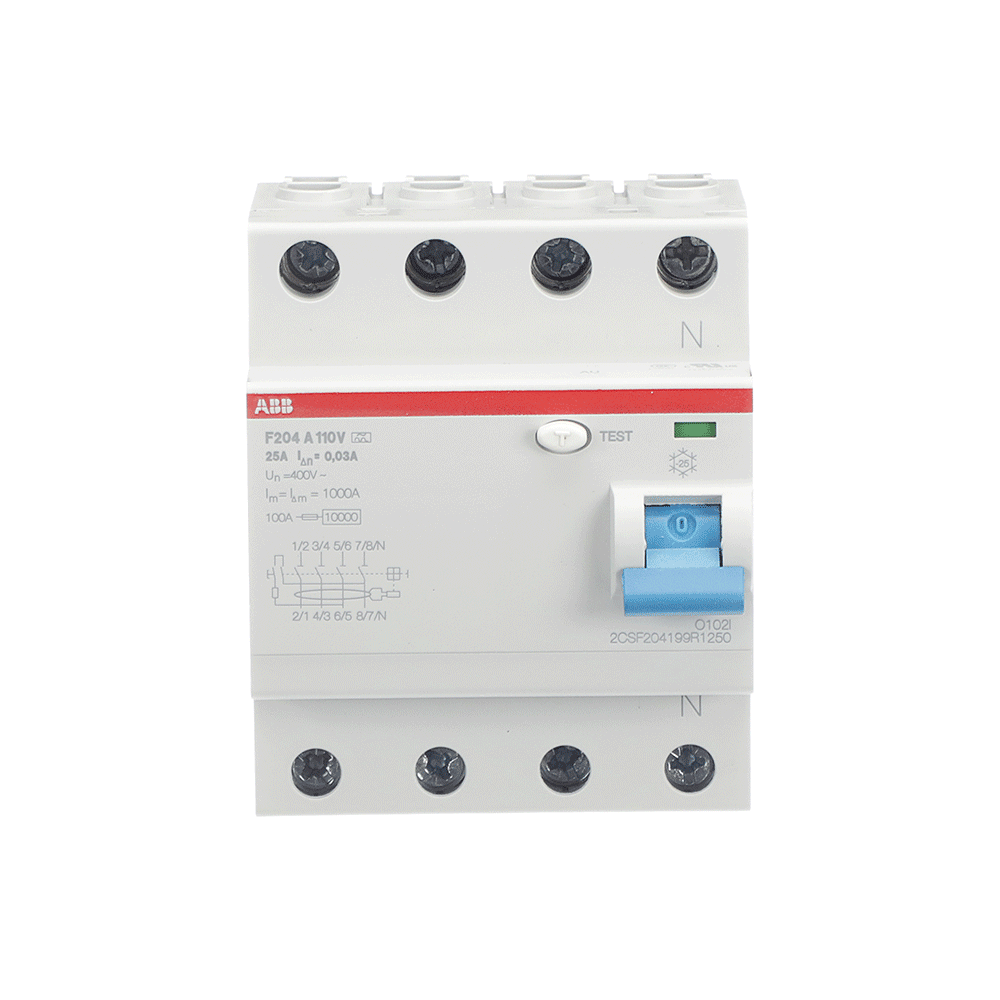

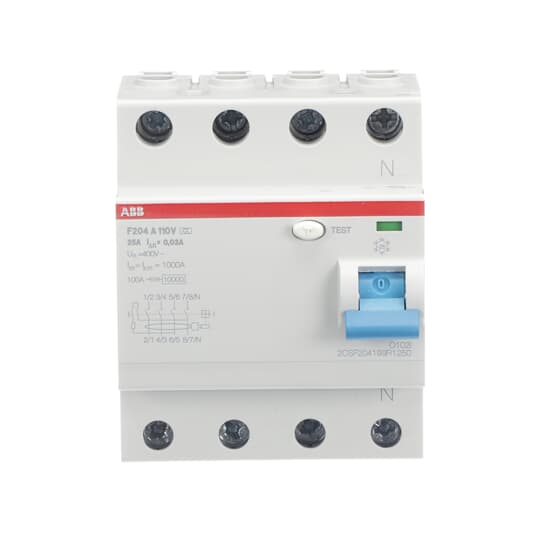

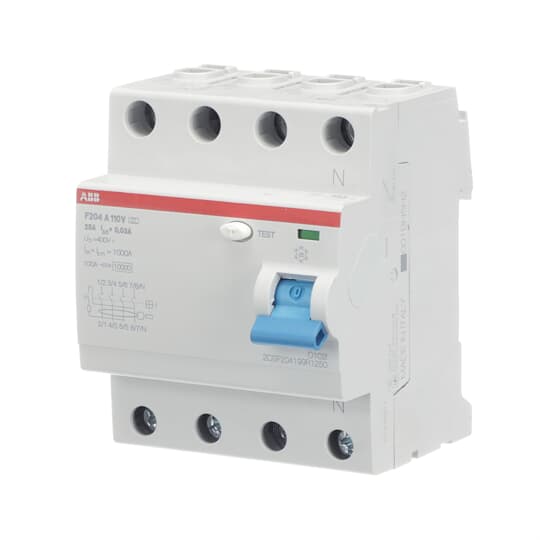

F204 A-25/0.03 110V Residual Current Circuit Breaker 4P Type A 30 mA

Manufacturer's No: F204A-25/0.03-110V     Manufacturer: ABB
F204 A-25/0.03 110V Residual Current Circuit Breaker 4P Type A 30 mA

Availability On Request

POA
  • Model: F204 A-25/0.03 110V Residual Current Circuit Breaker 4P Type A 30 mA
  • Provides protection against sinusoidal alternating and direct pulsating earth fault currents
  • Offers protection against indirect and direct contacts
  • Suitable for residential, commercial, and industrial applications
  • Minimum operating voltage of test button: 110V
  • Suitable for use at 230V


Product

Manufacturer Material ID -
F204A-25/0.03-110V
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Surge current capacity -
0.25 kiloampere
Degree of protection (IP) -
IP2X
Short-circuit breaking capacity (Icw) -
1 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
Other
Leakage current type -
A
Mounting method -
DIN rail
Number of poles -
4
Pollution degree -
2
Rated current -
25 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Width in number of modular spacings -
4
With interlocking device -
ABB
