6870005

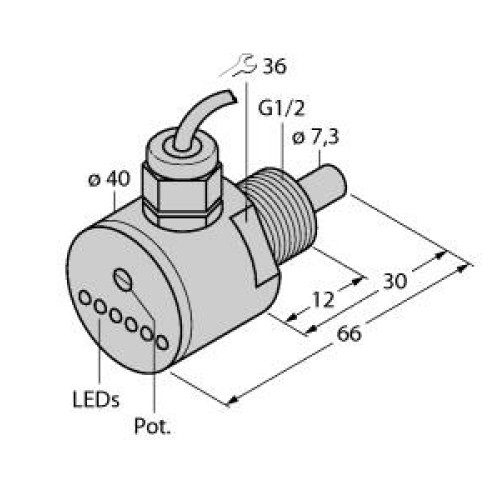

Flow Monitoring, Immersion Sensor with Integrated Processor

Manufacturer's No: FCS-G1/2DY-AP8X     Manufacturer: Turck Banner
Flow Monitoring, Immersion Sensor with Integrated Processor

Availability On Request

POA
  • Flow monitoring immersion sensor with integrated processor
  • Operating voltage: 19.2 to 28.8 VDC
  • Immersion sensor for liquid media
  • Calorimetric principle for measurement
  • Sensor made of PVDF material
  • Cable length: 2 meters
  • Adjustment done via potentiometer
  • Status indicated through LED chain
  • 3-wire DC sensor with 21 to 26 VDC
  • NO contact, PNP output

Read more

  • Cable device included


Product

Manufacturer Material ID -
FCS-G1/2DY-AP8X
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
90261021000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Adjustable setting value for flow for liquids -
1 Metre per second
Compressive strength measuring head -
5 Pressure
Measurement principle -
Thermal
Type of electric connection -
Other
Type of process connection -
Thread connection
