7525102 {T}

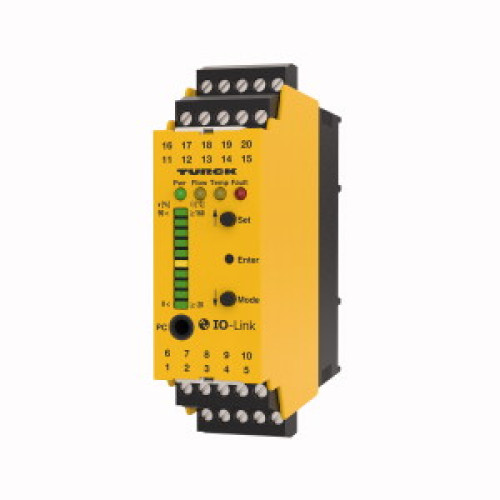

Flow Monitoring, For the Connection of FCS and FCI Product Series Flow Sensors

Manufacturer's No: FM-IM-3UR38X     Manufacturer: Turck Banner
Flow Monitoring, For the Connection of FCS and FCI Product Series Flow Sensors

Availability Available to order

£334.90
  • Flow monitoring device for connecting FCS and FCI product series flow sensors
  • IO-Link device with relay outputs
  • Operating voltage: 20-250 VAC / 20-125 VDC
  • Relay output for flow, temperature, and faults
  • Adjustable switchpoint without teaching flow boundaries (QuickTeach)
  • LED band for indicating flow speed and media temperature
  • Monitors operating and display range
  • Detects wire-break and short-circuit on the sensor side
  • Supports Standard IO or IO-Link operating mode
  • Parameters can be set via pushbutton or software-supported via IO-Link


Product

Manufacturer Material ID -
FM-IM-3UR38X
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature for evaluation electronic -
-25 Degrees celsius
Type of electric connection -
Other
