7525105

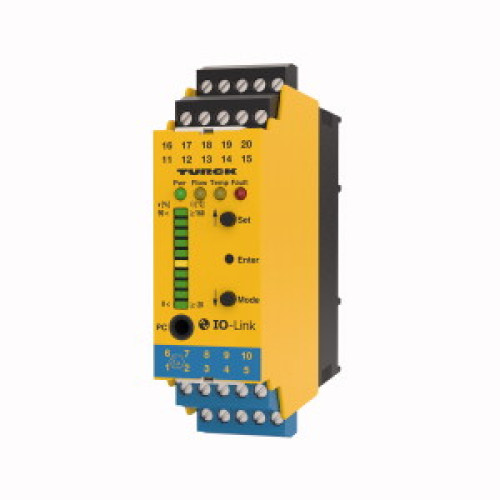

Flow Monitoring, For the Connection of FCS/FCI Product Series Ex Flow Sensors (N

Manufacturer's No: FMX-IM-2UPLI63X     Manufacturer: Turck Banner
Flow Monitoring, For the Connection of FCS/FCI Product Series Ex Flow Sensors (N

Availability On Request

£621.59
  • Flow monitoring system for connecting FCS/FCI Product Series Ex Flow Sensors (NAEX)
  • Compatible with HART devices, featuring current and transistor outputs
  • Operating voltage: 20-30 VDC
  • Designed for Ex ia and Ex ib sensors
  • Analog output for flow measurement, transistor outputs for temperature and fault detection
  • Allows setting upper and lower flow limits
  • LED band for visual indication of flow speed and media temperature
  • Monitors operating and display range, detects wire-break and short-circuit on sensor side
  • Parameters adjustable via pushbutton and FDT/DTM
  • Suitable for use with associated equipment [Ex ia Ga/Da]

Read more

  • Enables connection of flow probes in Zone 0/20


Product

Manufacturer Material ID -
FMX-IM-2UPLI63X
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature for evaluation electronic -
-25 Degrees celsius
Type of electric connection -
Other
Turck Banner

Availability On Request

£621.59
