7525101

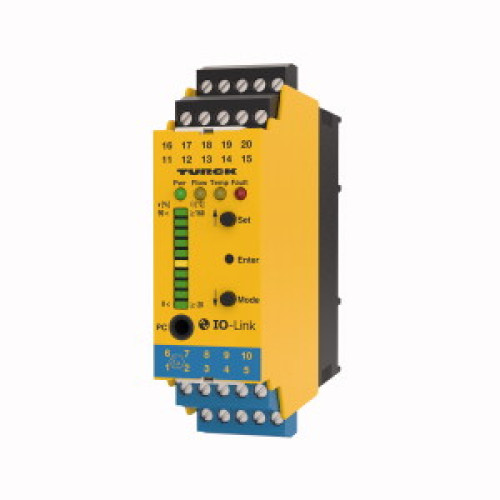

Flow Monitoring, For the Connection of FCS/FCI Product Series Ex Flow Sensors (N

Manufacturer's No: FMX-IM-3UP63X     Manufacturer: Turck Banner
Flow Monitoring, For the Connection of FCS/FCI Product Series Ex Flow Sensors (N

Availability On Request

£595.78
  • Flow monitoring device for FCS/FCI Product Series Ex Flow Sensors (NAEX)
  • IO-Link device with transistor outputs
  • Operating voltage: 20-30 VDC
  • Designed for Ex ia and Ex ib sensors
  • Transistor outputs for flow, temperature, and faults
  • LED band for indication of flow speed and media temperature
  • Switchpoint adjustment without teaching flow boundaries (QuickTeach)
  • Monitoring of operating and display range
  • Detection of wire-break and short-circuit on the sensor side
  • Standard IO or IO-Link operating mode

Read more

  • Parametrized via pushbutton or software-supported via IO-Link
  • Suitable for connection of flow probes in Zone 0/20
  • Associated equipment [Ex ia Ga/Da]


Product

Manufacturer Material ID -
FMX-IM-3UP63X
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature for evaluation electronic -
-25 Degrees celsius
Type of electric connection -
Other
