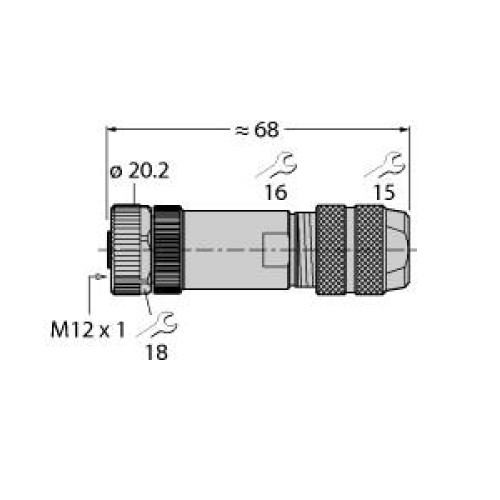

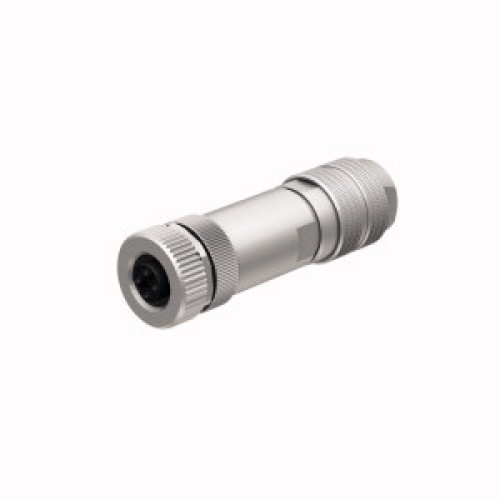

Field-Wireable Connector, Female Connector M12 × 1, Straight

Manufacturer's No: FW-M12KU5W-G-ZF-ME-SH-9     Manufacturer: Turck Banner
Field-Wireable Connector, Female Connector M12 × 1, Straight

Availability Available to order

£31.46
  • Field-wireable female connector M12 × 1 for PROFIBUS-DP applications
  • Voltage: 125 V
  • Data transfer rate: Up to 12 Mbps
  • Shielding: Iris spring connection
  • Coding: B-coding
  • Metal housing with tension spring connection
  • 5-pin configuration
  • Thread size: M18 × 1 metric screw-in
  • Cable diameter: 7.0 – 9.0 mm


Product

Manufacturer Material ID -
FW-M12KU5W-G-ZF-ME-SH-9
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-40 Degrees celsius
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Contact type -
Bus
Degree of protection (IP), mounted -
IP67
Diameter connector -
9 Millimetre
Housing material -
Zinc
Material of contact surface -
Gold
Rated current In -
4 Ampere
Rated voltage -
125 Volt
Type of electric connection -
Other
Type of housing -
Straight
Turck Banner
