1SBL411025R8011

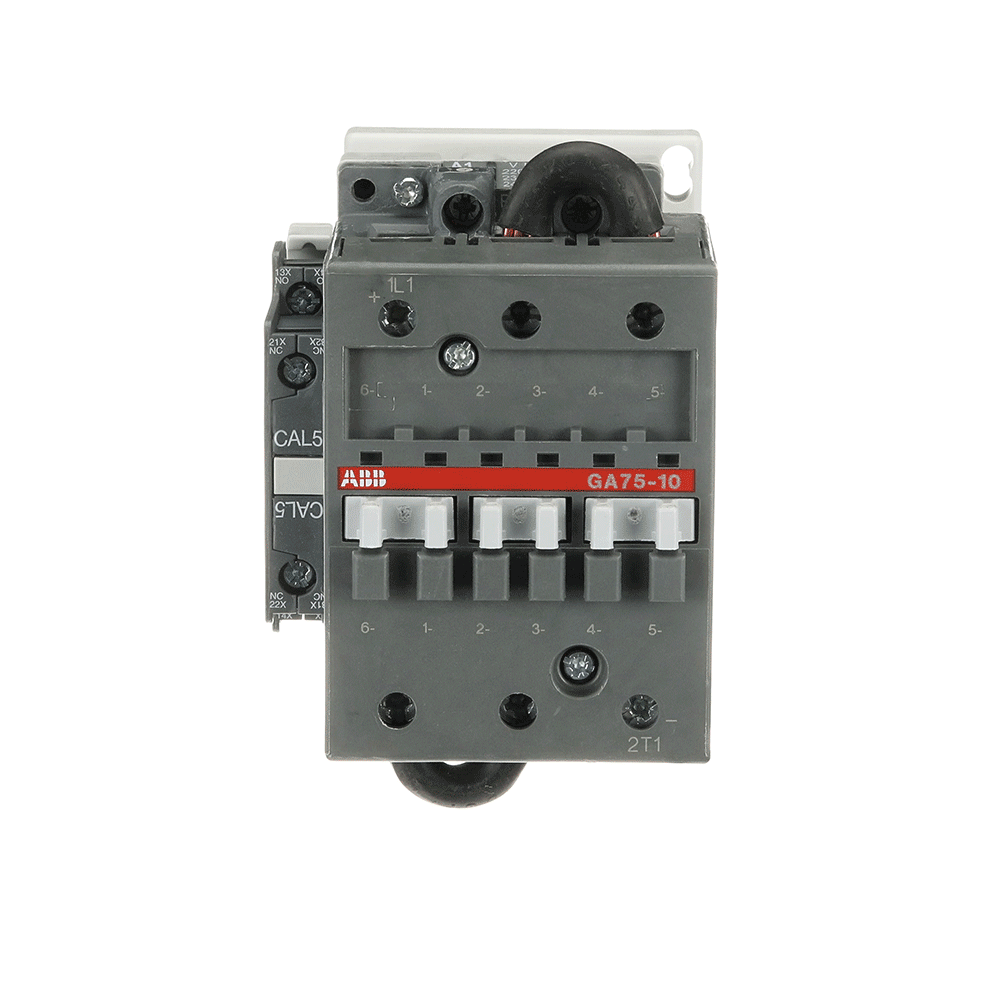

GA75-10-11 220-230V 50Hz / 230-240V 60Hz Contactor

Manufacturer's No: GA75-10-11     Manufacturer: ABB
GA75-10-11 220-230V 50Hz / 230-240V 60Hz Contactor

Availability Available to order

£763.84
  • Model: GA75-10-11
  • Voltage: 220-230V 50Hz / 230-240V 60Hz
  • Designed for DC circuit switching
  • Features arc chutes with permanent magnets for DC breaking
  • Block type design with three contactor paths arranged in series
  • Auxiliary contact: 1 CAL 5-11 side-mounted add-on
  • Control circuit: AC operated with laminated magnet circuit
  • Accessories available for customization


Product

Manufacturer Material ID -
GA75-10-11
Net Weight -
1.26kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation power at DC-3 / DC-5 at 440 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
220 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Rated control supply voltage Us at DC -
0 Volt
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of auxiliary contacts as normally closed contact -
1
Rated control supply voltage at AC 50 Hz -
220 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Type of electrical connection of main circuit -
Screw connection
Rated operation current Ie at DC-3 / DC-5 at 440 V -
85 Ampere
Voltage type for actuating -
AC
