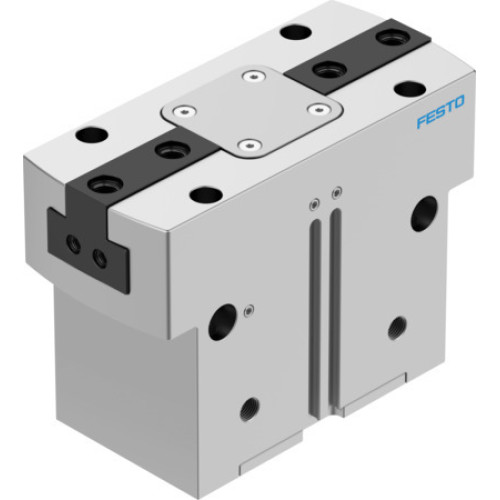

HGPT-63-A-B-F-G2 Parallel gripper

Manufacturer's No: HGPT-63-A-B-F-G2     Manufacturer: Festo
HGPT-63-A-B-F-G2 Parallel gripper

Availability Available to order

£1,460.56
  • Gripper Model: HGPT-63-A-B-F-G2
  • Gripping Force Retention: Yes
  • Size: 63
  • Stroke per Gripper Jaw: 8 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): ? 0.1 deg
  • Max. Gripper Jaw Backlash (Sz): ? 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.05 mm
  • Number of Gripper Jaws: 2

Read more

  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Gripper Force Backup: During Closing
  • Design: Wedge-Shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 4 BAR (Normal), 8 BAR (Blocked Air)
  • Max. Operating Frequency: 2 HZ
  • Min. Opening Time at 0.6 MPa: 308 ms
  • Min. Closing Time at 0.6 MPa: 154 ms
  • Max. Mass per External Gripper Finger: 1260 g
  • Operating Medium: Compressed Air (ISO 8573-1:2010 [7:4:4])
  • Corrosion Resistance Class: 2 (Moderate Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 93.034 kgcm²
  • Max. Force on Gripper Jaw (Fz Static): 5000 N
  • Max. Torque at Gripper (Mx Static): 160 Nm
  • Max. Torque at Gripper (My Static): 180 Nm
  • Max. Torque at Gripper (Mz Static): 140 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 3562 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole, Dowel Pin
  • Pneumatic Connection: M5 (Blocked Air), G1/8
  • Materials: RoHS-Compliant
  • Material Cover Cap: High-Alloy Stainless Steel
  • Material Housing: Anodised Aluminium
  • Material Gripper Jaws: Hardened Steel


Product

Manufacturer Material ID -
HGPT-63-A-B-F-G2
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
DE
UNSPSC -
41111926
