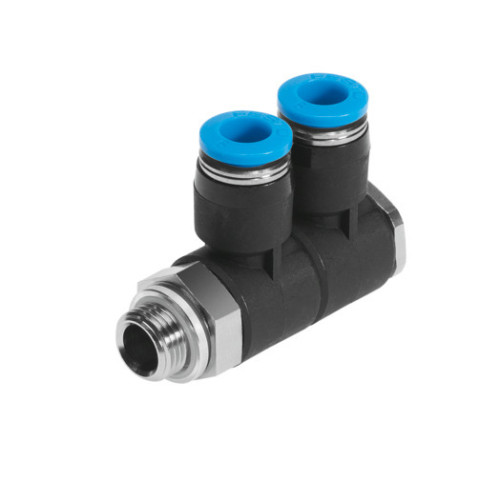

QSLV2-G1/4-10 Multiple distributor

Manufacturer's No: QSLV2-G1/4-10     Manufacturer: Festo
QSLV2-G1/4-10 Multiple distributor

Availability Available to order

£15.39
  • Multiple distributor with L-shape design
  • Male thread G1/4 for tubing O.D. 10mm
  • Operating pressure range: -0.095 MPa to 6 bar (-13.775 PSI to 87 PSI)
  • Temperature-dependent operating pressure: -0.095 MPa to 14 bar (-13.775 PSI to 203 PSI)
  • Suitable for water up to 0.6 MPa at 0-50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature range: -10°C to 80°C
  • Nominal torque: 9 Nm with ±20% tolerance

Read more

  • Product weight: 77g
  • Pneumatic connection: Male thread G1/4 and tubing outside diameter of 10mm
  • Materials: RoHS-compliant with housing made of PBT, hollow bolt of nickel-plated brass, release ring of POM, tubing seal of NBR, and tubing clamp component of high-alloy stainless steel


Product

Manufacturer Material ID -
QSLV2-G1/4-10
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
74122000
Country of Origin -
TW
Minimum Order Quantity -
1
UNSPSC -
32151705
Festo

Availability Available to order

£15.39
