7541213 {T}

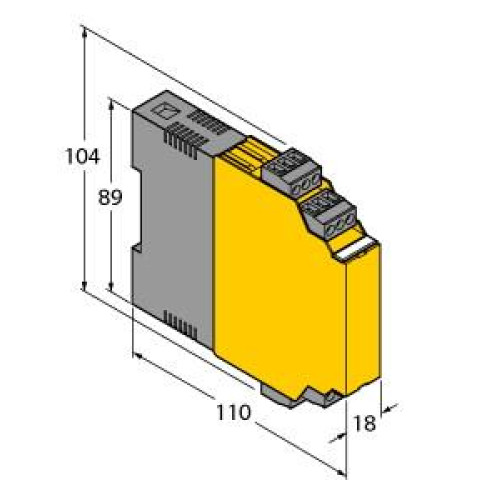

Isolating switching amplifier, 2-channel, Operating voltage 20…250 VAC

Manufacturer's No: IM1-22EX-MT     Manufacturer: Turck Banner
Isolating switching amplifier, 2-channel, Operating voltage 20…250 VAC

Availability On Request

£277.64
  • Isolating switching amplifier
  • 2-channel with 2 transistor outputs (MOSFET)
  • Operating voltage: 20-250 VAC / 20-125 VDC
  • Output mode adjustable (NO/NC mode)
  • Input circuits monitored for wire-break/short-circuit (ON/OFF switchable)
  • Complete galvanic isolation
  • Input reverse-polarity protected
  • ATEX, IECEx, UL, CFMUS, CSA, TR CU, NEPSI, KOSHA, TIIS, CCOE, INMETRO certified
  • Installation in zone 2


Product

Manufacturer Material ID -
IM1-22EX-MT
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121018

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
104 Millimetre
Height -
110 Millimetre
Mounting method -
Snap mounting support rail
Number of inputs, according to NAMUR -
2
Operating temperature -
-25 Degrees celsius
Power consumption -
3 Watt
Rated operation frequency -
40 Hertz
Rated supply voltage at AC -
20 Volt
Rated supply voltage at DC -
20 Volt
Switching current -
0.1 Ampere
Switching frequency -
1000 Hertz
Switching voltage -
250 Volt
Type of electric connection -
Screw connection
Width -
18 Millimetre
Turck Banner

Availability On Request

£277.64
