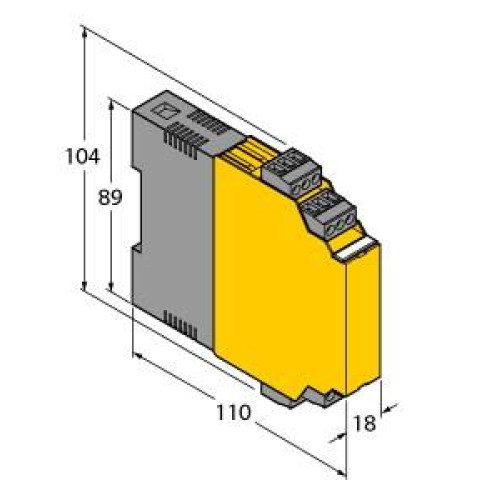

Isolating switching amplifier, 2-channel, Operating voltage 196…253 VAC

Manufacturer's No: IM12-22EX-R/230VAC     Manufacturer: Turck Banner
Isolating switching amplifier, 2-channel, Operating voltage 196…253 VAC

Availability Available to order

POA
  • Isolating switching amplifier
  • 2-channel
  • Operating voltage: 196-253 VAC
  • Output mode: adjustable (NO/NC mode)
  • Multiplexing of signals possible
  • Complete galvanic isolation
  • Input reverse-polarity protected
  • ATEX, TR CU compliance


Product

Manufacturer Material ID -
IM12-22EX-R/230VAC
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
39121521

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
104 Millimetre
Height -
110 Millimetre
Mounting method -
Snap mounting support rail
Number of inputs, according to NAMUR -
2
Operating temperature -
-25 Degrees celsius
Rated operation frequency -
48 Hertz
Rated supply voltage at AC -
196 Volt
Switching current -
2 Ampere
Switching frequency -
10 Hertz
Switching voltage -
250 Volt
Type of electric connection -
Screw connection
Width -
18 Millimetre
Turck Banner

Availability Available to order

POA
