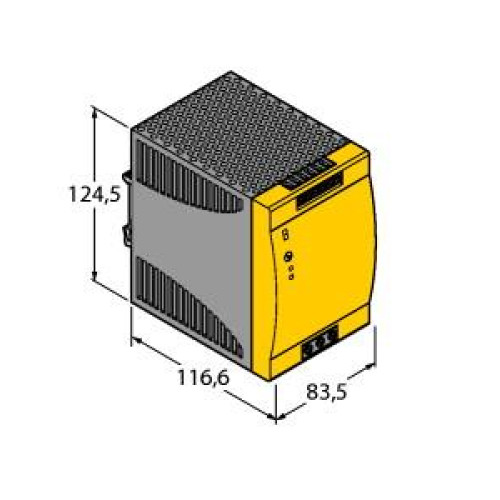

Switching Power Supply Module, Operating voltage 90…132 VAC / 210

Manufacturer's No: IM82-24-10     Manufacturer: Turck Banner
Switching Power Supply Module, Operating voltage 90…132 VAC / 210

Availability On Request

£329.55
  • Switching Power Supply Module
  • Operating Voltage: 90-132 VAC / 210-370 VDC
  • Output Voltage: Adjustable from 22.5 to 28.5 VDC
  • Nominal Current: 10 A
  • Single/Parallel Operating Mode
  • Surge Protection
  • Universal Operating Voltage
  • Mains Failure Bridging up to 30 ms
  • High Efficiency
  • Natural Air Cooling

Read more

  • Power-Good Relay
  • cULus Listed
  • Safety Extra-Low Voltage SELV IEC/EN 60950
  • SEMI-F47 Compliance


Product

Manufacturer Material ID -
IM82-24-10
Net Weight -
1.45kg

Additional Product Information

Commodity Code -
85044095900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121018

Technical Specification

1st secondary output voltage -
22.5 Volt
Degree of protection (IP rating) -
IP20
Depth -
124.5 Millimetre
Height -
116.6 Millimetre
Nominal value output current 1 -
10 Ampere
Nominal value output voltage 1 -
24 Volt
Power consumption -
276 Voltampere
Recess width -
83.5 Millimetre
Type of electric connection -
Other
Width -
83.5 Millimetre
Turck Banner
