7545041 {T}

Switching Power Supply Module, Operating voltage 85…264 VAC / 90

Manufacturer's No: IM82-24-2.5     Manufacturer: Turck Banner
Switching Power Supply Module, Operating voltage 85…264 VAC / 90

Availability On Request

£162.91
  • Switching Power Supply Module
  • Operating Voltage: 85-264 VAC / 90-375 VDC
  • Output Voltage: Adjustable from 24-28 VDC
  • Nominal Current: 2.5 A
  • Single/Parallel Operating Mode
  • Surge Protection
  • Universal Operating Voltage
  • Mains Failure Bridging up to 30 ms
  • High Efficiency
  • Natural Air Cooling

Read more

  • Safety Extra-Low Voltage (SELV) IEC/EN 60950


Product

Manufacturer Material ID -
IM82-24-2.5
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85044095900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121018

Technical Specification

1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20

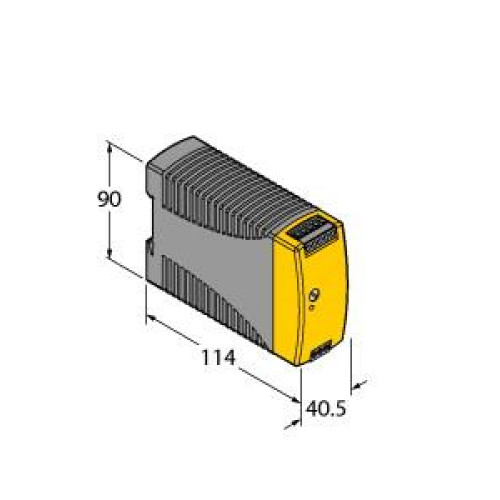

Depth -
90 Millimetre
Height -
114 Millimetre
Nominal value output current 1 -
2.5 Ampere
Nominal value output voltage 1 -
24 Volt
Power consumption -
83 Voltampere
Recess width -
40.5 Millimetre
Type of electric connection -
Other
Width -
40.5 Millimetre
Turck Banner

Availability On Request

£162.91
