7580018 {T}

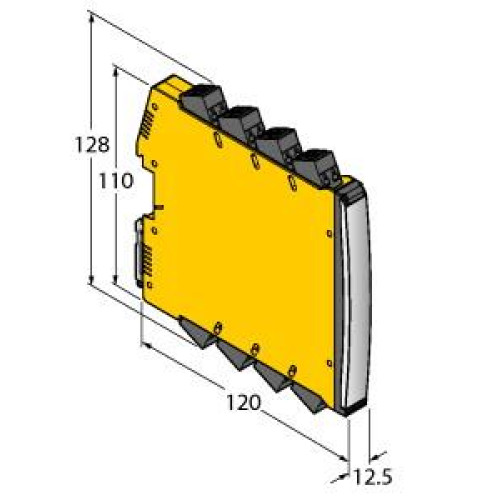

Isolating switching amplifier, 2-channel, Operating voltage 10…30 VDC

Manufacturer's No: IMX12-DI01-2S-2R-0/24VDC/CC     Manufacturer: Turck Banner
Isolating switching amplifier, 2-channel, Operating voltage 10…30 VDC

Availability Available to order

£172.74
  • Isolating switching amplifier
  • 2-channel with 2 relay outputs (complementary contact)
  • Operating voltage: 10 to 30 VDC
  • Switchable between 2-channel or signal doubling
  • Output mode adjustable (NO/NC mode)
  • Input circuits monitored for wire-break/short-circuit (ON/OFF switchable)
  • Complete galvanic isolation and input reverse-polarity protection
  • Removable spring type terminals
  • Certified for ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, DNV, GL
  • Suitable for use in Zone 2 with SIL 2 compliance


Product

Manufacturer Material ID -
IMX12-DI01-2S-2R-0/24VDC/CC
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
128 Millimetre
Mounting method -
Snap mounting support rail
Number of inputs, according to NAMUR -
2
Operating temperature -
-25 Degrees celsius
Power consumption -
1.2 Watt
Rated supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
2
Switching current -
2 Ampere
Switching frequency -
15 Hertz
Switching voltage -
250 Volt
Type of electric connection -
Spring clamp connection
Width -
12.5 Millimetre
