7580020

IMX12-DI01-2S-2T-0/24VDC - Turck Product

Manufacturer's No: IMX12-DI01-2S-2T-0/24VDC
IMX12-DI01-2S-2T-0/24VDC - Turck Product

Availability Back Order

£165.83
  • Model: IMX12-DI01-2S-2T-0/24VDC
  • Input Voltage: 24VDC
  • Digital Inputs: 2
  • Digital Outputs: 2
  • Compact design for space-saving installation


Product

Manufacturer Material ID -
IMX12-DI01-2S-2T-0/24VDC
Net Weight -
0.15kg

Additional Product Information

UNSPSC -
39121521

Technical Specification

Degree of protection (IP rating) -
IP20

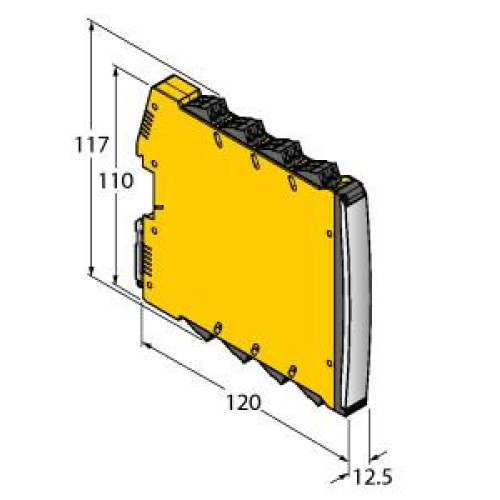

Depth -
120 Millimetre
Height -
117 Millimetre
Mounting method -
Snap mounting support rail
Number of inputs, according to NAMUR -
2
Operating temperature -
-25 Degrees celsius
Power consumption -
0.8 Watt
Rated supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
2
Switching current -
0.1 Ampere
Switching frequency -
10000 Hertz
Switching voltage -
30 Volt
Type of electric connection -
Screw connection
Width -
12.5 Millimetre


Availability Back Order

£165.83
