50114207

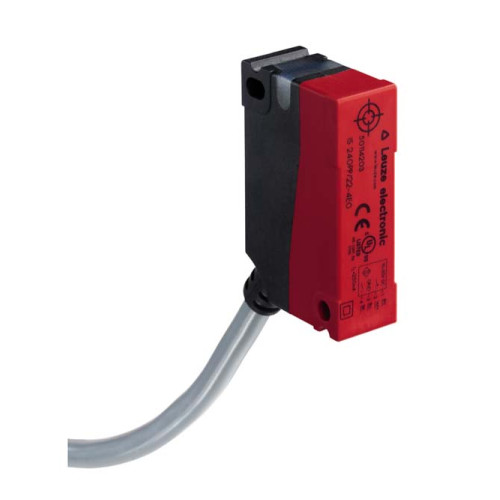

Inductive switch Typ. operating range limit Sn: 4 mm; Operating range Sa: 0 ... 3.2 mm; Supply voltage: 10 ... 30 V, DC; Digital s

Manufacturer's No: IS 240PP/44-4E0     Manufacturer: Leuze
Inductive switch Typ. operating range limit Sn: 4 mm; Operating range Sa: 0 ... 3.2 mm; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Switching output 1: Transistor, PNP, NO

Availability On Request

£124.00
  • Operating range limit Sn: 4 mm
  • Operating range Sa: 0 to 3.2 mm
  • Supply voltage: 10 to 30 V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, PNP, NO contact
  • Switching output 2: Transistor, PNP, NC contact
  • Switching frequency: 1,400 Hz
  • Connection: Cable, 2,000 mm, 4-wire
  • Dimensions: 12 mm x 40 mm x 26 mm
  • Type of installation: Embedded

Read more

  • Housing material: Plastic
  • Certifications: c UL US


Product

Manufacturer Material ID -
IS 240PP/44-4E0
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
ID
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Type of switch function -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Category according to EN 954-1 -
UN
Type of interface -
UN
Diameter sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Interference resistance to magnetic fields -
UN
Material housing -
Plastic
Thumbnail of product picture -
Coating housing -
Other
Construction type housing -
Cuboid
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
40 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
26 Millimetre
Max. output current at protected output -
0 Milliampere
Mechanical mounting condition for sensor -
Concise
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Performance level acc. to EN ISO 13849-1 -
None
Rated control supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
3.2 Millimetre
Switching frequency -
1400 Hertz
Type of actuation -
Other
Type of electric connection -
Cable
Type of interface for safety communication -
None
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
12 Millimetre
