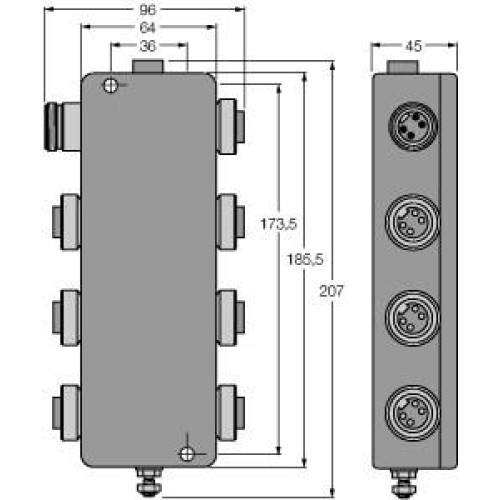

PROFIBUS-PA, IP67 junction box, 6-channel

Manufacturer's No: JBBS-48-M613/EX     Manufacturer: Turck Banner
PROFIBUS-PA, IP67 junction box, 6-channel

Availability On Request

£549.00
  • PROFIBUS-PA junction box
  • 6-channel with IP67 rating
  • Operating voltage: 9-32 VDC
  • Stainless steel 7/8" flange connections
  • Integrated terminating resistor (activatable)
  • Cable shielding: Capacitive or direct connection to housing potential selectable
  • Isolated support terminal for optional protective conductor
  • Powder-coated die-cast aluminium housing
  • Pressure compensation element for condensation protection
  • Connection of housing potential via M5 x 1 bolt

Read more

  • Entity and FISCO compliant (IEC 60079-11)


Product

Manufacturer Material ID -
JBBS-48-M613/EX
Net Weight -
1.00kg

Additional Product Information

Commodity Code -
85369095000
Country of Origin -
DE
UNSPSC -
32151705
