6611415 {T}

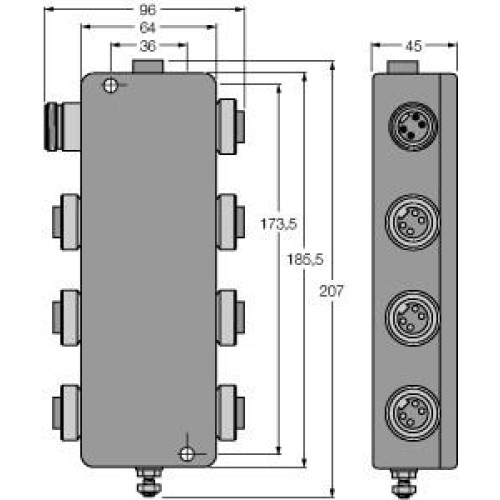

IP67 Junction Box, 6-Channel, PROFIBUS-PA, Operating voltage 12

Manufacturer's No: JBBS-48SC-M613/EX     Manufacturer: Turck Banner
IP67 Junction Box, 6-Channel, PROFIBUS-PA, Operating voltage 12

Availability Available to order

£824.47
  • PROFIBUS-PA junction box for wall mounting
  • 6-channel with IP67 protection
  • Operating voltage: 12-32 VDC
  • Stainless steel 7/8" flange connections
  • Short-circuit protection per drop line/spur
  • Integrated terminating resistor (activatable)
  • Cable shielding: Capacitive or direct connection to housing potential selectable
  • Isolated support terminal for optional protective conductor in cable
  • Powder-coated die-cast aluminium housing
  • Pressure compensation element prevents condensation

Read more

  • Connection of housing potential via M5 x 1 bolt
  • Entity and FISCO compliant according to IEC 60079-11


Product

Manufacturer Material ID -
JBBS-48SC-M613/EX
Net Weight -
0.95kg

Additional Product Information

Commodity Code -
85369095000
Country of Origin -
DE
UNSPSC -
32151705
Turck Banner

Availability Available to order

£824.47
