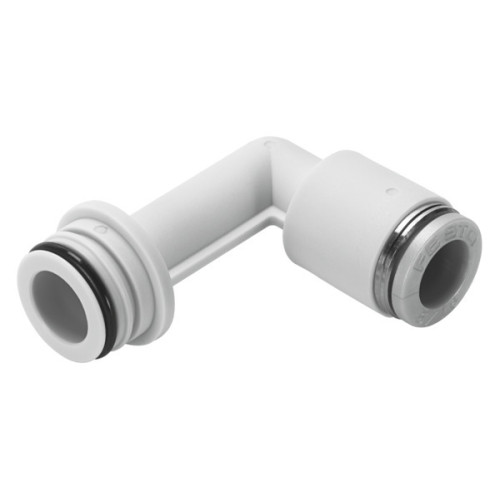

QSPLLKG18-5/16-U Cartridge

Manufacturer's No: QSPLLKG18-5/16-U     Manufacturer: Festo
QSPLLKG18-5/16-U Cartridge

Availability Available to order

£3.36
  • Cartridge model: QSPLLKG18-5/16-U
  • Polymer version, grey, L-shape, long design with mounting pin
  • Cartridge size: 18 mm for tubing O.D. 5/16 in
  • Package quantity: 10 pieces
  • Nominal size: 5.2 mm
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi)
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Lubricated operation possible
  • Corrosion resistance class: CRC 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature range: -5°C to 60°C (23°F to 140°F)
  • Product weight: 8.1 g
  • Material: Housing - PA-reinforced, Release ring - POM, Tubing seal - NBR, Tubing clamp component - High-alloy stainless steel
  • Mounting: Mounting pin
  • Pneumatic connection: Port 1 - Cartridge 18 mm, Port 2 - For tubing O.D. 5/16 in
  • Colour of release ring: Grey
  • RoHS-compliant materials


Product

Manufacturer Material ID -
QSPLLKG18-5/16-U
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
39174000
Country of Origin -
JP
Minimum Order Quantity -
1
UNSPSC -
32151705
Festo

Availability Available to order

£3.36
