63000600

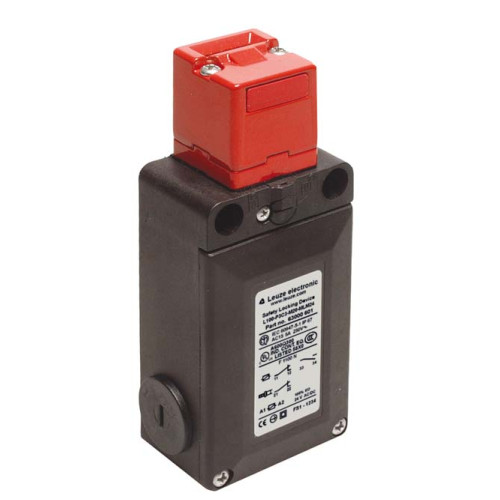

Safety locking device Contact allocation, actuator: 1NC; Contact allocation, magnet: 1NC + 1NO; Cable entry: 3 Piece(s), M20 x 1.5

Manufacturer's No: L100-P3C3-M20-SLM24     Manufacturer: Leuze
Safety locking device Contact allocation, actuator: 1NC; Contact allocation, magnet: 1NC + 1NO; Cable entry: 3 Piece(s), M20 x 1.5; Connection: Terminal, 8 -pin; Dimension: 60.8 mm x 37.6 mm x 135 mm

Availability Back Order

£182.00
  • Series: L100
  • Functions: Locking device with guard interlocking (ISO 14119), Auxiliary release, Mechanical guard interlocking (spring-force), Switch-on current reduction (adjustable)
  • Integration in control circuits up to category 4 (EN ISO 13849-1)
  • Operating principle: Quiescent current principle
  • Connection: Terminal, 8-pin
  • Dimensions: 60.8 mm x 37.6 mm x 135 mm
  • Housing material: Plastic
  • Max. Locking force: 1,100 N
  • Degree of protection: IP 67
  • Certifications: IMQ, c UL US

Accessories

Others



Product

Manufacturer Material ID -
L100-P3C3-M20-SLM24
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Number of safety auxiliary contacts -
-
Type of interface -
UN
Rated control supply voltage Us magnet drive at AC 50 Hz -
- Volt
Rated control supply voltage Us magnet drive at AC 60 Hz -
- Volt
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
IP66
Rated control supply voltage Us magnet drive at DC -
24 Volt
Guard locking force -
1.1 Newton
Thumbnail of product picture -
Ambient temperature during operating -
-25 Degrees celsius
Clamping force -
1100 Newton
Coating housing -
Uncoated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
38.2 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
135 Millimetre
Rated operation current Ie at AC-15, 125 V -
10 Ampere
Rated operation current Ie at AC-15, 230 V -
10 Ampere
Rated operation current Ie at AC-15, 24 V -
10 Ampere
Rated operation current Ie at DC-13, 125 V -
10 Ampere
Rated operation current Ie at DC-13, 230 V -
10 Ampere
Rated operation current Ie at DC-13, 24 V -
10 Ampere
Suitable for safety functions -
Type of electric connection -
Other
Type of guard locking -
Quiescent current principle
Type of interface for safety communication -
None
Type of switching contact -
Slow-action switch
Width sensor -
62.8 Millimetre
Leuze

Availability Back Order

£182.00
