186505

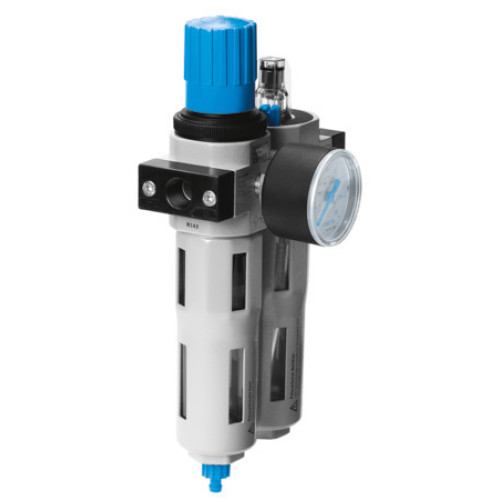

FRC-1/2-D-MAXI Service unit

Manufacturer's No: FRC-1/2-D-MAXI     Manufacturer: Festo
FRC-1/2-D-MAXI Service unit

Availability Available to order

£540.61
  • Service unit FRC-1/2-D-MAXI
  • Filter/regulator/lubricator combination
  • 40 µm filter with metal bowl guard
  • Manual condensate drain
  • Size: Maxi
  • Series: D
  • Actuator lock: Rotary knob with lock
  • Mounting position: Vertical +/- 5°
  • Max. condensate volume: 80 CCM
  • Grade of filtration: 40 MIM

Read more

  • Bowl guard: Metal bowl guard
  • Pressure gauge: Analog
  • Operating pressure: 0.1 MPA to 1.6 MPA (1 BAR to 16 BAR)
  • Pressure regulation range: 0.5 BAR to 12 BAR
  • Max. pressure hysteresis: 0.04 MPA to 0.4 BAR (5.8 PSI)
  • Standard nominal flow rate: 7600 L2
  • Operating medium: Compressed air to ISO 8573-1:2010, Inert gases
  • Lubricated operation possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Air purity class at output: Compressed air to ISO 8573-1:2010, Inert gases
  • Media temperature: -10°C to 60°C
  • Ambient temperature: -10°C to 60°C
  • Product weight: 2390 G
  • Type of mounting: In-line installation with accessories
  • Pneumatic connection, port 1 and port 2: G1/2
  • RoHS-compliant materials
  • Material housing: Die-cast zinc
  • Material bowl: PC


Product

Manufacturer Material ID -
FRC-1/2-D-MAXI
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
8536 5080
Country of Origin -
HU
UNSPSC -
41111926
Festo

Availability Available to order

£540.61
