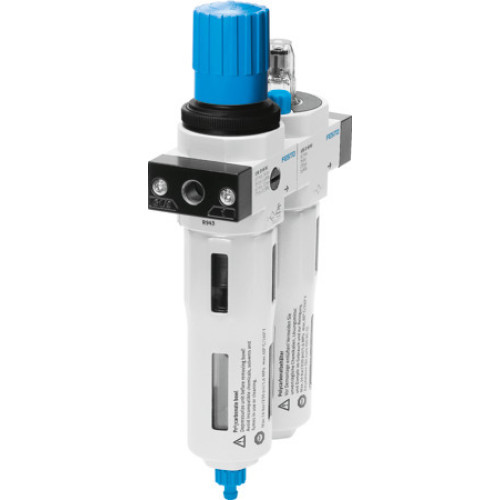

FRC-1/4-D-O-MIDI-A Service unit

Manufacturer's No: FRC-1/4-D-O-MIDI-A     Manufacturer: Festo
FRC-1/4-D-O-MIDI-A Service unit

Availability Available to order

£293.29
  • Service unit FRC-1/4-D-O-MIDI-A: Filter/regulator/lubricator combination with 40 µm filter and metal bowl guard
  • Size: Midi, Series: D
  • Actuator lock: Rotary knob with lock
  • Mounting position: Vertical +/- 5°
  • Condensate drain: Fully automatic
  • Max. condensate volume: 43 cubic centimeters
  • Grade of filtration: 40 micrometers
  • Pressure regulation range: 0.5 to 12 BAR
  • Max. pressure hysteresis: 0.02 MPA, 0.2 BAR, 2.9 PSI
  • Standard nominal flow rate: 1500 L/min

Read more

  • Operating pressure: 0.2 to 12 BAR
  • Operating medium: Compressed air to ISO 8573-1:2010, Inert gases
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Air purity class at output: Compressed air to ISO 8573-1:2010, Inert gases
  • Media temperature: -10°C to 60°C
  • Ambient temperature: -10°C to 60°C
  • Product weight: 1350 grams
  • Type of mounting: In-line installation, With accessories
  • Pneumatic connection: G1/4
  • Material housing: Die-cast zinc, Material bowl: PC
  • RoHS-compliant materials


Product

Manufacturer Material ID -
FRC-1/4-D-O-MIDI-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84811005
Country of Origin -
HU
UNSPSC -
41111926

Technical Specification

Max. output current -
- Milliampere
Opening angle -
- Degrees
Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of switch function -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Operation agent-safety class -
UN
Setting procedure -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Laser protection class -
UN
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Min. reflector distance -
- Millimetre
Time of reaction -
- Millisecond
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Material of cable sheath -
UN
Degree of protection (IP) -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Sensing mode -
UN
Rated switching distance -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
62 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
43000 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switching output -
Relay contact
Voltage type -
AC/DC
Wavelength of the sensor -
630 Nanometre
Width sensor -
18 Millimetre
