50135764

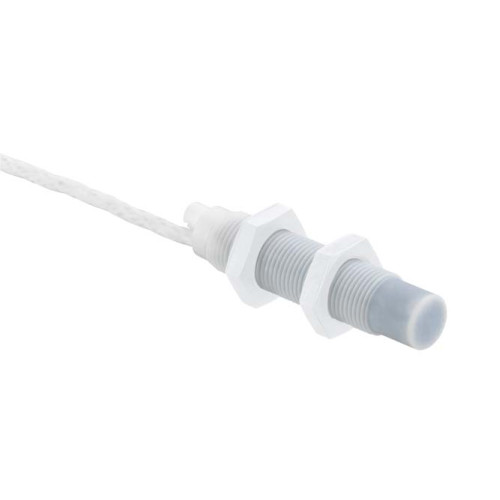

The Capacitive sensor from . Switching distance Sn: 1 ... 8 mm; Assured switching distance: 8 mm; Output function: PNP, NC (normal

Manufacturer's No: LCS-1M12T-N08PNC-K020T     Manufacturer: Leuze
The Capacitive sensor from . Switching distance Sn: 1 ... 8 mm; Assured switching distance: 8 mm; Output function: PNP, NC (normally closed); Connection: Cable, 2,000 mm, 3 -wire; Housing design: C

Availability On Request

£154.00
  • Switching distance: 1
  • 8 mm
  • Assured switching distance: 8 mm
  • Output function: PNP, NC (normally closed)
  • Connection: Cable, 2,000 mm, 3-wire
  • Design: Cylindrical housing
  • Thread size: M12 x 1 mm
  • Dimensions: 12 mm x 53 mm

Accessories



Product

Manufacturer Material ID -
LCS-1M12T-N08PNC-K020T
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32151500

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Category according to EN 954-1 -
UN
Type of interface -
UN
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Material housing -
Plastic
Thumbnail of product picture -
Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Plastic
Length of sensor -
53 Millimetre
Max. output current at protected output -
0 Milliampere
Mechanical mounting condition for sensor -
Not flat
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Performance level acc. to EN ISO 13849-1 -
None
Rated control supply voltage at DC -
12 Volt
SIL according to IEC 61508 -
None
Supply voltage -
12 Volt
Switching distance -
8 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Other
Type of electric connection -
Cable
Type of interface for safety communication -
None
Type of switch function -
Breaker contact
Type of switching output -
PNP
Voltage type -
DC
Leuze

Availability On Request

£154.00
