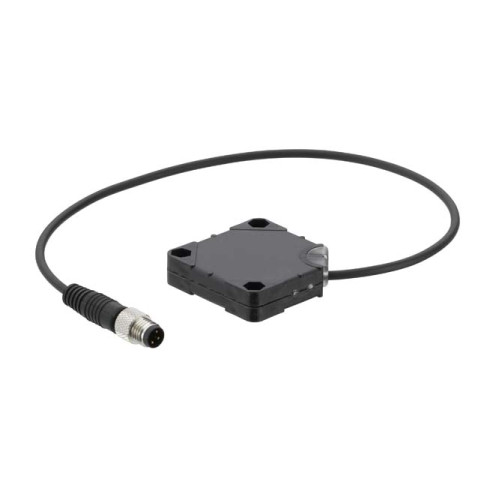

LCS-1Q40P-F20PNC-K003PM08 - Capacitive sensor

Manufacturer's No: LCS-1Q40P-F20PNC-K003PM08     Manufacturer: Leuze
LCS-1Q40P-F20PNC-K003PM08 - Capacitive sensor

Availability On Request

POA
The Capacitive sensor from . Switching distance Sn: 1 ... 20 mm; Assured switching distance: 20 mm; Output function: PNP, NC (normally closed); Connection: Connector, 300 mm, M8, Plastic, 3 -pin; Housing design: Cubic; Dimensions: 40 mm x 40 mm x 10 mm


Product

Manufacturer Material ID -
LCS-1Q40P-F20PNC-K003PM08
Net Weight -

Additional Product Information

UNSPSC -
32151500

Technical Specification

Coating housing -
UN
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of switching output -
UN
Type of switch function -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Max. output current at protected output -
- Milliampere
Category according to EN 954-1 -
UN
Type of actuation -
UN
Type of interface -
UN
Diameter sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Voltage type -
DC
Material housing -
Plastic
Switching frequency -
100 Hertz
Switching distance -
20 Millimetre
Number of semiconductor outputs with signalling function -
1
Type of electric connection -
Connector M8
Construction type housing -
Cuboid
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Width sensor -
40 Millimetre
Height of sensor -
40 Millimetre
Length of sensor -
10 Millimetre
Leuze

Availability On Request

POA
