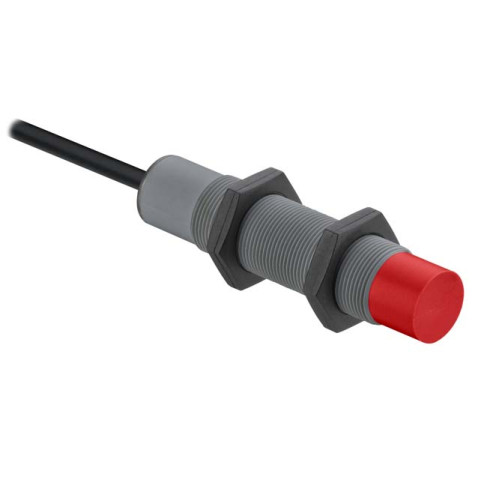

The Capacitive sensor from . Switching distance Sn: 2 ... 15 mm; Assured switching distance: 12.1 mm; Output function: PNP, NO (no

Manufacturer's No: LCS-2M18P-N15PNO-K020V     Manufacturer: Leuze
The Capacitive sensor from . Switching distance Sn: 2 ... 15 mm; Assured switching distance: 12.1 mm; Output function: PNP, NO (normally open); Connection: Cable, 2,000 mm, 3 -wire; Housing design:

Availability Back Order

£47.00
  • Switching distance: Sn 2
  • 15 mm
  • Assured switching distance: 12.

Accessories



Product

Manufacturer Material ID -
LCS-2M18P-N15PNO-K020V
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CN
UNSPSC -
32151500

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Category according to EN 954-1 -
UN
Type of interface -
UN
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Material housing -
Plastic
Thumbnail of product picture -
Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Plastic
Length of sensor -
70 Millimetre
Max. output current at protected output -
0 Milliampere
Mechanical mounting condition for sensor -
Not flat
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Performance level acc. to EN ISO 13849-1 -
None
Rated control supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
12.1 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Other
Type of electric connection -
Cable
Type of interface for safety communication -
None
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Leuze

Availability Back Order

£47.00
