3057578

Photoelectric Sensor, Laser Measuring System

Manufacturer's No: LG10A65NUQ     Manufacturer: Turck Banner
Photoelectric Sensor, Laser Measuring System

Availability On Request

POA
  • Photoelectric Sensor
  • Laser Measuring System
  • Operating Voltage: 12-30 VDC
  • Max. Range: 125 mm
  • Measuring Range: 75-125 mm
  • Focal Distance: 180 mm
  • Analog Output: 0-10 V
  • Cable Length: 0.15 m, M12 × 1, 8-pin
  • Signal Intensity Indication
  • Alarm Output

Read more

  • Adjustable Operation Modes: Slow, Medium, Fast


Product

Manufacturer Material ID -
LG10A65NUQ
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

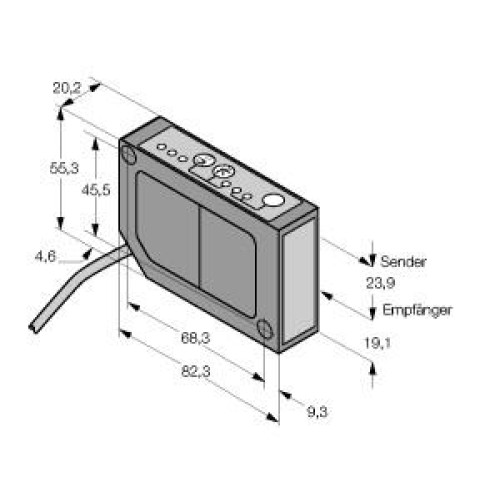

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
55.3 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
82.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Setting procedure -
Teach-In
Supply voltage -
12 Volt
Switching frequency -
500 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Width sensor -
20.2 Millimetre
Turck Banner

Availability On Request

POA
