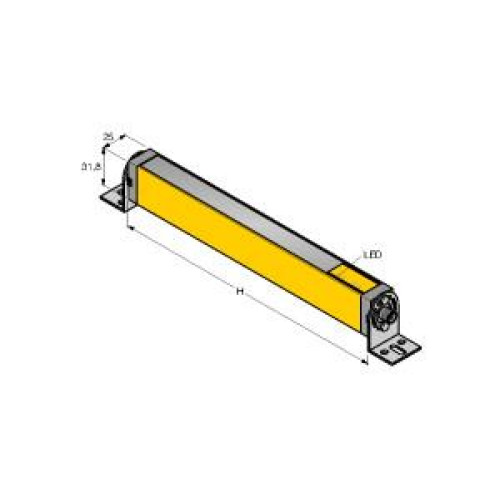

LS2E30-300Q8 EZS TYPE2 E TRIP 30 x 300

Manufacturer's No: LS2E30-300Q8     Manufacturer: Turck Banner
LS2E30-300Q8 EZS TYPE2 E TRIP 30 x 300

Availability On Request

£472.73
  • Light screen for machine safety applications
  • Emitter with operating voltage of 20-28 VDC
  • Maximum range of 15,000 mm
  • M12 x 1 male connector with 8-pin configuration
  • Protection class IP65
  • Scan field of 300 mm
  • Resolution of 30 mm
  • Internal testing in a 500-ms cycle
  • Range of 15 m
  • Operating voltage of 24 VDC ± 15%

Read more

  • Type 2 according to IEC 61496-1, -2
  • Category 2 PL d according to EN ISO 13849-1
  • SIL 2 according to IEC 61508


Product

Manufacturer Material ID -
LS2E30-300Q8
Net Weight -
0.94kg

Additional Product Information

Commodity Code -
85414900000
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Height of sensor -
365 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
13 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
300 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Wavelength of the sensor -
950 Nanometre
Width sensor -
25.2 Millimetre
