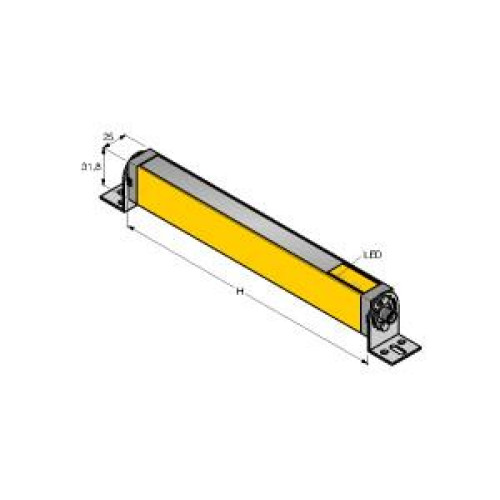

EZ-SCREEN TYPE 2, TRIP Output, E/R Pair, 30 Resolution, 150 Defined Area, 15 m Range, Yellow Housing, 8-pin M12 Integral QD, Mount

Manufacturer's No: LS2TP30-150Q88     Manufacturer: Turck Banner
EZ-SCREEN TYPE 2, TRIP Output, E/R Pair, 30 Resolution, 150 Defined Area, 15 m Range, Yellow Housing, 8-pin M12 Integral QD, Mounting Hardware Included

Availability On Request

£752.20
  • Light screen for machine safety applications
  • Emitter/receiver pair
  • Operating voltage: 20-28 VDC
  • Maximum range: 15000 mm
  • M12 x 1 male connector, 8-pin
  • Protection class: IP65
  • Scan field: 150 mm
  • Resolution: 30 mm
  • Internal testing in 500-ms cycle
  • Range: 15 m

Read more

  • Operating voltage: 24 VDC +/- 15%
  • Switching output without restart interlock (TRIP)
  • Type 2 according to IEC 61496-1, -2; category 2 PL d according to EN ISO 13849-1; SIL 2 according to IEC 61508


Product

Manufacturer Material ID -
LS2TP30-150Q88
Net Weight -
1.55kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Height of sensor -
215 Millimetre
Length of sensor -
31.8 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
11 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
150 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
950 Nanometre
Width sensor -
25.2 Millimetre
Turck Banner

Availability On Request

£752.20
