3073546

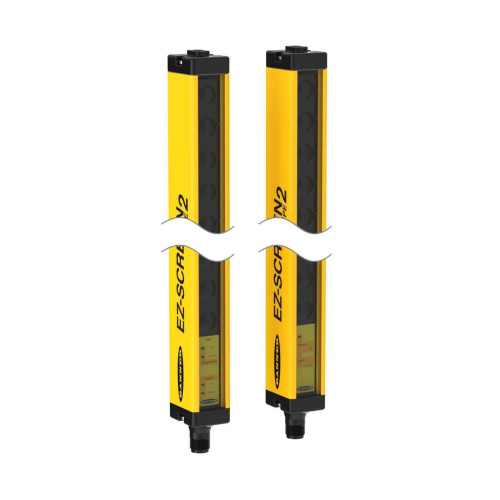

EZ-SCREEN TYPE 2, TRIP Output, E/R Pair, 30 Resolution, 450 Defined Area, 15 m Range, Yellow Housing, 8-pin M12 Integral QD, Mount

Manufacturer's No: LS2TP30-450Q88     Manufacturer: Turck Banner
EZ-SCREEN TYPE 2, TRIP Output, E/R Pair, 30 Resolution, 450 Defined Area, 15 m Range, Yellow Housing, 8-pin M12 Integral QD, Mounting Hardware Included

Availability Back Order

£1,296.89
  • Type: EZ-SCREEN TYPE 2
  • Output: TRIP
  • Resolution: 30 mm
  • Defined Area: 450 mm
  • Range: 15 meters
  • Housing Color: Yellow
  • Connector: 8-pin M12 Integral QD
  • Mounting Hardware Included


Product

Manufacturer Material ID -
LS2TP30-450Q88
Net Weight -

Additional Product Information

UNSPSC -
39122216

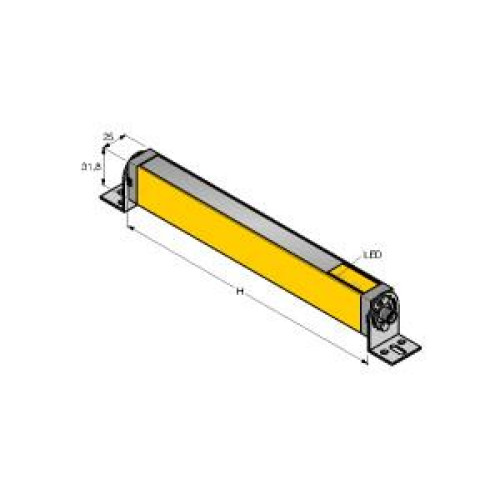

Technical Specification

Ambient temperature -
0 Degrees celsius
Height of sensor -
515 Millimetre
Length of sensor -
31.8 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
14 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
450 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
950 Nanometre
Width sensor -
25.2 Millimetre
Turck Banner

Availability Back Order

£1,296.89
