3073548

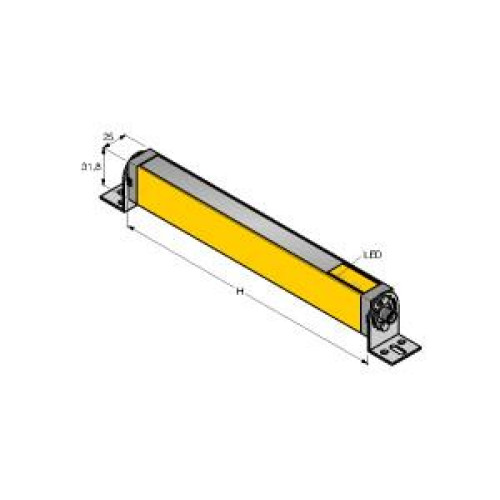

LS2TP30750Q88 EZS TYPE2 PAIR TRIP 30mm X 750mm;

Manufacturer's No: LS2TP30-750Q88
LS2TP30750Q88 EZS TYPE2 PAIR TRIP 30mm X 750mm;

Availability Back Order

£2,349.59
  • LS2TP30750Q88 EZS Type2 Pair Trip
  • Size: 30mm x 750mm


Product

Manufacturer Material ID -
LS2TP30-750Q88
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Height of sensor -
815 Millimetre
Length of sensor -
31.8 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
17 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
750 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
950 Nanometre
Width sensor -
25.2 Millimetre


Availability Back Order

£2,349.59
