3073543

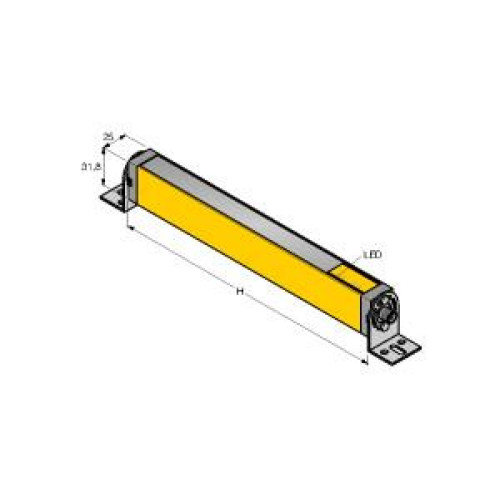

LS2TR30-1500Q8 EZS TYPE2 R TRIP 30 x 1500

Manufacturer's No: LS2TR30-1500Q8     Manufacturer: Turck Banner
LS2TR30-1500Q8 EZS TYPE2 R TRIP 30 x 1500

Availability On Request

£1,902.73
  • Light screen for machine safety applications
  • Receiver with operating voltage: 20-28 VDC
  • Maximum range: 15000 mm
  • M12 x 1 male connector, 8-pin
  • Protection class: IP65
  • Scan field: 1500 mm
  • Resolution: 30 mm
  • Internal testing in 500-ms cycle
  • Range: 15 m
  • Operating voltage: 24 VDC ± 15%

Read more

  • Switching output without restart interlock (TRIP)
  • Type 2 according to IEC 61496-1, -2
  • Category 2 PL d according to EN ISO 13849-1
  • SIL 2 according to IEC 61508


Product

Manufacturer Material ID -
LS2TR30-1500Q8
Net Weight -
2.90kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Height of sensor -
1563 Millimetre
Length of sensor -
31.8 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
25 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
1500 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
25.2 Millimetre
Turck Banner

Availability On Request

£1,902.73
