1SBV010711R1211

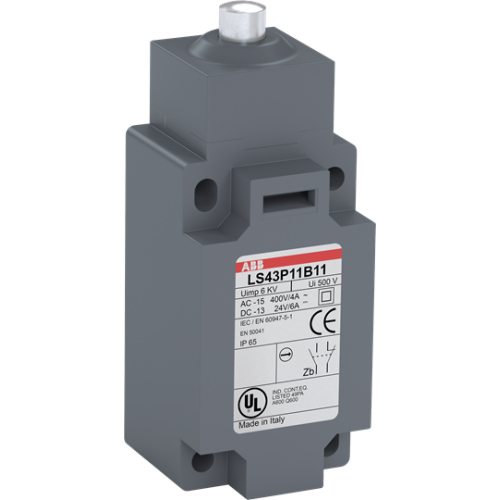

LS43P11B11 Limit Switch

Manufacturer's No: LS43P11B11     Manufacturer: ABB
LS43P11B11 Limit Switch

Availability On Request

£45.82
LS43P11B11 Limit Switch


Product

Manufacturer Material ID -
LS43P11B11
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Material housing -
UN
Type of switching contact -
UN
Number of cams -
-
Cam distance -
- Millimetre
Plunger orientation -
UN
Degree of protection (IP) -
UN
Type of interface -
UN
Degree of protection (NEMA) -
UN
Alignment of the control element -
Other
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Diameter sensor -
0 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
104 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
41 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
0
Rated operation current Ie at AC-15, 125 V -
5.5 Ampere
Rated operation current Ie at AC-15, 230 V -
3.1 Ampere
Rated operation current Ie at AC-15, 24 V -
10 Ampere
Rated operation current Ie at DC-13, 125 V -
0.6 Ampere
Rated operation current Ie at DC-13, 230 V -
0.4 Ampere
Rated operation current Ie at DC-13, 24 V -
6 Ampere
Switching function -
Quick-break switch
Type of control element -
Plunger
Type of electric connection -
Cable entry metrical
Type of interface for safety communication -
None
Width sensor -
41 Millimetre
