67273 {B}

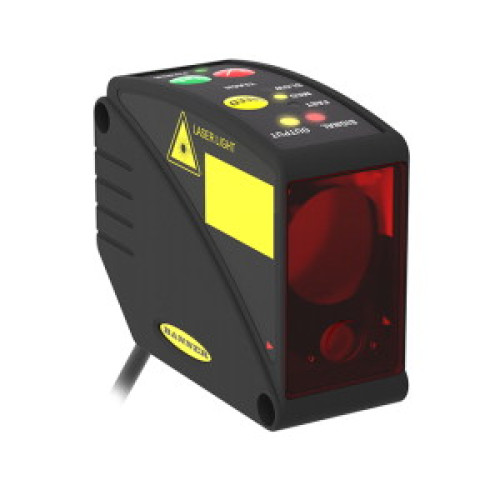

LT3 Series: Laser Retroreflective Time-of-Flight Sensor, Range: 500 to 50 m, 12-24 V dc, Outputs: Discrete: PNP  Analo

Manufacturer's No: LT3PULV     Manufacturer: Turck Banner
LT3 Series: Laser Retroreflective Time-of-Flight Sensor, Range: 500 to 50 m, 12-24 V dc, Outputs: Discrete: PNP  Analog 0-10 V, 2 m (6.5 ft) Cable

Availability Available to order

£1,640.80
  • Photoelectric sensor with retroreflective laser technology
  • Switching and analog output
  • Operating voltage: 12-24 VDC
  • Max. range: 50,000 mm
  • Cable length: 2 m, 7-wire
  • Indication of signal intensity
  • Protection class: IP67
  • Includes BRT-TVHG-8X10P highly reflective foil
  • Measuring range with reflector foil: 50 m
  • 3 adjustable response times for switching output

Read more

  • Hysteresis and measuring range independently adjustable
  • Analog output edge invertible


Product

Manufacturer Material ID -
LT3PULV
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
68.5 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
87 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Setting procedure -
Teach-In
Supply voltage -
12 Volt
Switching frequency -
1000 Hertz
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
35.3 Millimetre
Turck Banner

Availability Available to order

£1,640.80
