3073440

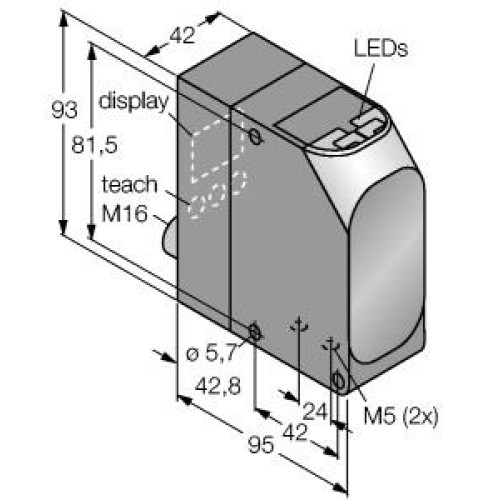

LT7 Series: Laser Retroreflective Time-of-Flight, Range: 500 - 250 m, 18-30 V dc, Outputs: Discrete 2 PNP RS-422 or SSI, M16 12-pi

Manufacturer's No: LT7PLVQ     Manufacturer: Turck Banner
LT7 Series: Laser Retroreflective Time-of-Flight, Range: 500 - 250 m, 18-30 V dc, Outputs: Discrete 2 PNP RS-422 or SSI, M16 12-pin QD

Availability Available to order

£4,238.50
  • Type: Retroreflective Laser Sensor (Runtime Measurement)
  • Max. Range: 250,000 mm
  • Laser Type: Infrared, 900 nm (Class 1) and Visible Red, 650 nm (Class 2)
  • Operating Voltage: 18-30 VDC
  • Male Connector: M16 x 0.75, 12-pin
  • Features: Indication of signal intensity, Alignment aid during programming, LCD display
  • Outputs: Two independently adjustable switching outputs, Alarm output
  • Interface: Serial RS422 or SSI compatible


Product

Manufacturer Material ID -
LT7PLVQ
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
93 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
95 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Setting procedure -
Manual adjustment
Standard for interfaces -
SSI
Supply voltage -
18 Volt
Switching frequency -
400 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
42 Millimetre
Turck Banner

Availability Available to order

£4,238.50
