3803280

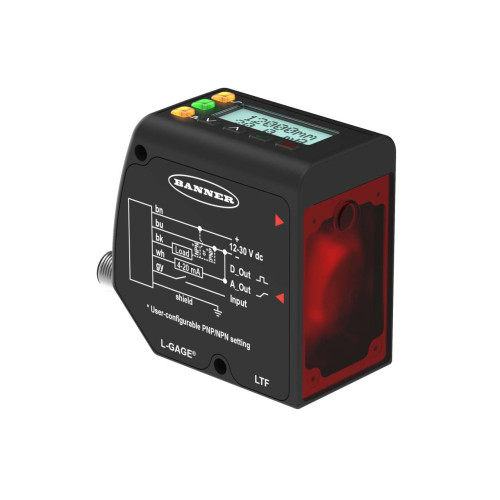

Laser Diffuse Time-of-Flight Sensor, Range: 50-24000, Input: 12-30 V dc, Output 1: NPN/PNP Configurable, IO-Link, Output 2: NPN/PN

Manufacturer's No: LTF24KC2LDQ     Manufacturer: Turck Banner
Laser Diffuse Time-of-Flight Sensor, Range: 50-24000, Input: 12-30 V dc, Output 1: NPN/PNP Configurable, IO-Link, Output 2: NPN/PNP Configurable, Class 2 Laser, M12 Integral QD

Availability Back Order

£930.60
  • Photoelectric Sensor with Diffuse-Mode Laser for Runtime Measurement
  • Switching Output and IO-Link for communication
  • Operating Voltage: 12-30 VDC
  • Max. Range: 24,000 mm
  • 2-line, 8-segment display
  • M12 x 1 male connector, 5-pin, rotatable
  • Range: 0.05-24 m
  • Laser Class 2, 660 nm wavelength
  • Resolution: 0.3-4 mm
  • 1 x PNP switching output with IO-Link communication

Read more

  • Transmission of process value and parameterization via IO-Link


Product

Manufacturer Material ID -
LTF24KC2LDQ
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
43211902

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
56 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
77 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Standard for interfaces -
Other
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width sensor -
26 Millimetre
Turck Banner

Availability Back Order

£930.60
