3002686

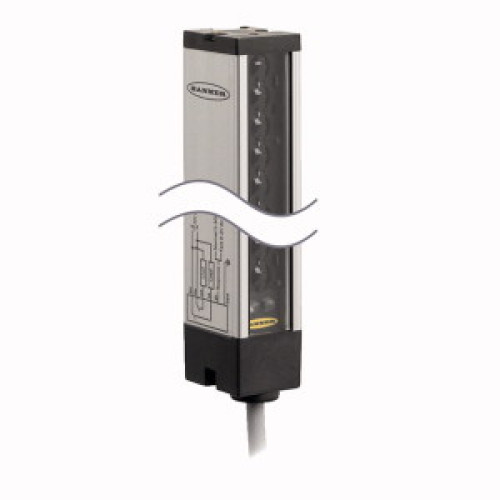

LX Series: Emitter, Short-Range, Range: Normal 100-200, Input: 10-30 V dc, Output: No output, 150 (6 in) M12 Pigtail QD

Manufacturer's No: LX12ESRQ     Manufacturer: Turck Banner
LX Series: Emitter, Short-Range, Range: Normal 100-200, Input: 10-30 V dc, Output: No output, 150 (6 in) M12 Pigtail QD

Availability On Request

£397.42
  • Photoelectric Sensor:
    • Switching Light Screen
    • Emitter
    • Operating Voltage: 10-30 VDC
    • Max. Range: 200 mm
    • Cable Length: 0.2 m
    • Cable with Male End: M12 x 1, 5-pin, 0.15 m
    • Protection Class: IP65
    • Scan Field: 295 mm
    • Minimum Target Size: 5.6 mm
    • Programmable connection for reduced sensing range
    • Includes 2 slot nuts with M5 screws for wall mounting


Product

Manufacturer Material ID -
LX12ESRQ
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
342 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
3.2 Millisecond
Resolution of the light curtain -
5.6 Millimetre
Safety field height -
295 Millimetre
Type of electric connection -
Connector M12
Wavelength of the sensor -
880 Nanometre
Width sensor -
25.4 Millimetre
Turck Banner

Availability On Request

£397.42
