02692 {B}

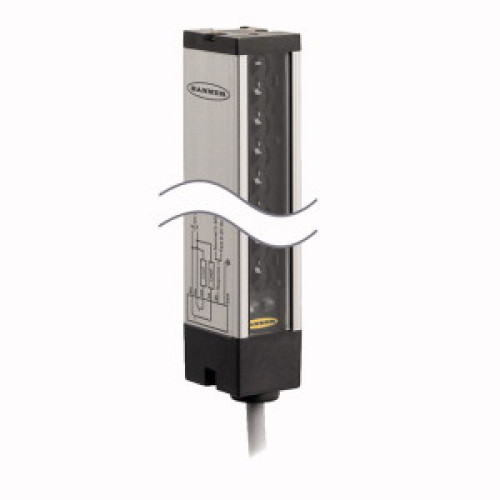

LX Series: Receiver, Short-Range, Range: Normal 100-200, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 Pigtail

Manufacturer's No: LX12RSRQ     Manufacturer: Turck Banner
LX Series: Receiver, Short-Range, Range: Normal 100-200, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 Pigtail QD

Availability Available to order

£664.25
  • Type: Photoelectric Sensor
  • Light Screen Switching Receiver
  • Operating Voltage: 10-30 VDC
  • Max. Range: 200 mm
  • Cable Length: 0.2 m, Male end M12 x 1, 5-pin
  • Protection Class: IP65
  • Scan Field: 295 mm
  • Minimum Target Size: 5.6 mm
  • Programmable connection for reduced sensing range
  • Includes 2 slot nuts with M5 screws for wall mounting


Product

Manufacturer Material ID -
LX12RSRQ
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

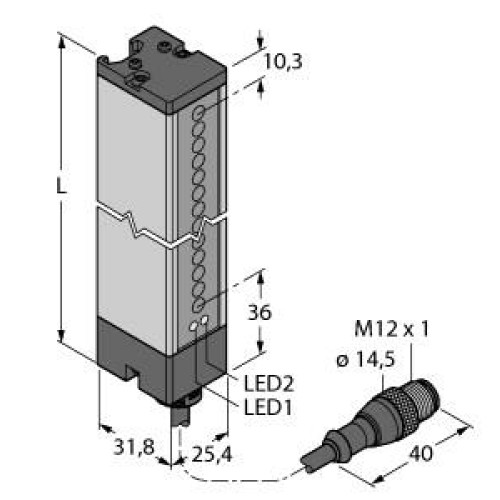

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
342 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
3.2 Millisecond
Resolution of the light curtain -
5.6 Millimetre
Safety field height -
295 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP/NPN
Width sensor -
25.4 Millimetre
Turck Banner

Availability Available to order

£664.25
