3002659

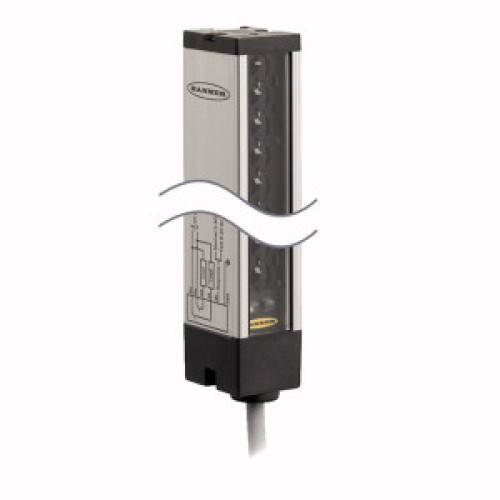

LX Series: Emitter, Short Range, Range: Normal 100-200, input 10-30 V dc, Output: No output, 2 m (6.5 ft) Cable

Manufacturer's No: LX3ESR     Manufacturer: Turck Banner
LX Series: Emitter, Short Range, Range: Normal 100-200, input 10-30 V dc, Output: No output, 2 m (6.5 ft) Cable

Availability On Request

£264.04
  • Photoelectric Sensor
  • Switching Light Screen
  • Emitter
  • Operating Voltage: 10-30 VDC
  • Max. Range: 200 mm
  • Cable Length: 2 m, 5-wire
  • Protection Class: IP65
  • Scan Field: 67 mm
  • Minimum Target Size: 5.6 mm
  • Programmable connection for reduced sensing range

Read more

  • Includes 2 slot nuts with M5 screws for wall mounting


Product

Manufacturer Material ID -
LX3ESR
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

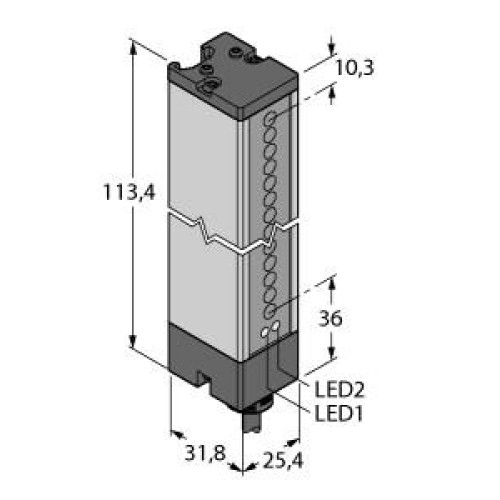

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
113.4 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
0.8 Millisecond
Resolution of the light curtain -
5.6 Millimetre
Safety field height -
67 Millimetre
Type of electric connection -
Cable
Wavelength of the sensor -
880 Nanometre
Width sensor -
25.4 Millimetre
Turck Banner

Availability On Request

£264.04
