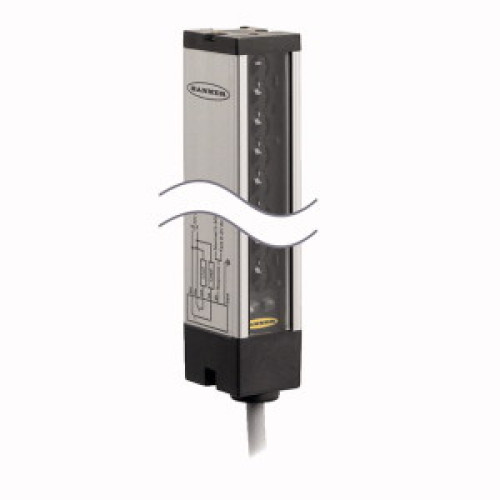

3002679

LX Series: Receiver, Standard Range, Range: Normal 300 - 2 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, DO Output, 150 (6

Manufacturer's No: LX6RQ     Manufacturer: Turck Banner
LX Series: Receiver, Standard Range, Range: Normal 300 - 2 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, DO Output, 150 (6 in) M12 Pigtail QD

Availability On Request

£410.13
  • Photoelectric Sensor
  • Switching Light Screen
  • Receiver
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 0.2 m, M12 × 1, 5-pin
  • Protection Class: IP65
  • Scan Field: 143 mm
  • Minimum Target Size: 9.5 mm
  • Programmable connection for reduced sensing range

Read more

  • Includes 2 slot nuts with M5 screws for wall mounting


Product

Manufacturer Material ID -
LX6RQ
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

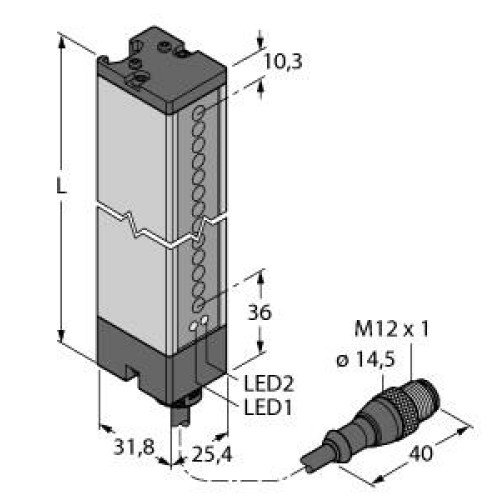

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
189.6 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
1.6 Millisecond
Resolution of the light curtain -
9.5 Millimetre
Safety field height -
143 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP/NPN
Width sensor -
25.4 Millimetre
