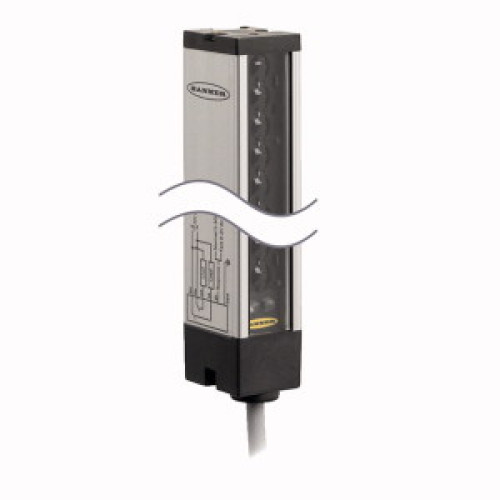

3071667

LX Series: Emitter, Standard Range, Range: Normal 300 - 2 m, Input 10-30 V dc, Output: No output, 150 (6 in) M12 Pigtail QD

Manufacturer's No: LX9EQ     Manufacturer: Turck Banner
LX Series: Emitter, Standard Range, Range: Normal 300 - 2 m, Input 10-30 V dc, Output: No output, 150 (6 in) M12 Pigtail QD

Availability On Request

£355.69
  • Type: Photoelectric Sensor
  • Light Screen: Switching
  • Emitter: Included
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 0.2 m
  • Cable Type: 5-pin, M12 × 1, male end
  • Protection Class: IP65
  • Scan Field: 218 mm
  • Minimum Target Size: 9.5 mm

Read more

  • Programmable connection for reduced sensing range
  • Accessories: 2 slot nuts with M5 screws for wall mounting


Product

Manufacturer Material ID -
LX9EQ
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
265.8 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
2.4 Millisecond
Resolution of the light curtain -
9.5 Millimetre
Safety field height -
218 Millimetre
Type of electric connection -
Connector M12
Wavelength of the sensor -
880 Nanometre
Width sensor -
25.4 Millimetre
Turck Banner

Availability On Request

£355.69
