3053811

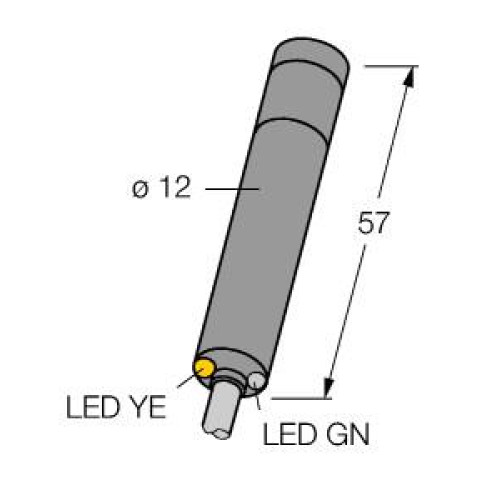

Photoelectric Sensor, Opposed Mode Sensor (Laser Emitter)

Manufacturer's No: M126E1LD W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Laser Emitter)

Availability Available to order

POA
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Laser Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 30000 mm
  • Cable Length: 9 m, 4-wire, PVC
  • Protection Classes: IP67 / IP68
  • Housing Material: Aluminum
  • LED all-round visible
  • Laser Class: 1


Product

Manufacturer Material ID -
M126E1LD W/30
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Housing material -
Metal
Laser protection class -
Class 1
Length of sensor -
67.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
30000 Millimetre
Rated switching distance -
30000 Millimetre
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Polarity free red light
Wavelength of the sensor -
650 Nanometre
Turck Banner

Availability Available to order

POA
