3053810

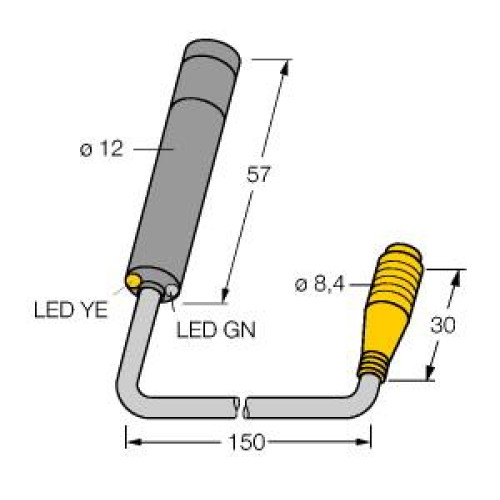

M12 Laser: Class 1 Emitter, Range: refer to datasheet, Input: 10-30 V dc, Output: Not Applicable, 150 (6 in) 3-pin M8 Pigtail QD

Manufacturer's No: M126E1LDQ     Manufacturer: Turck Banner
M12 Laser: Class 1 Emitter, Range: refer to datasheet, Input: 10-30 V dc, Output: Not Applicable, 150 (6 in) 3-pin M8 Pigtail QD

Availability On Request

£311.22
  • Type: Photoelectric Sensor (Opposed Mode, Laser Emitter)
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 30000 mm
  • Cable Length: 0.15 m, 4-pin, PVC
  • Housing Material: Aluminum
  • Protection Class: IP67
  • LED All-round visible
  • Laser Class: 1


Product

Manufacturer Material ID -
M126E1LDQ
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Housing material -
Metal
Laser protection class -
Class 1
Length of sensor -
57 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
30000 Millimetre
Rated switching distance -
30000 Millimetre
Setting procedure -
Other
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Wavelength of the sensor -
650 Nanometre
Turck Banner

Availability On Request

£311.22
