3077216

M12 Series: Emitter, Range: 5 m, Input 10-30 V dc, Output: No output, 9 m (30 ft) Cable

Manufacturer's No: M12E W/30     Manufacturer: Turck Banner
M12 Series: Emitter, Range: 5 m, Input 10-30 V dc, Output: No output, 9 m (30 ft) Cable

Availability Available to order

£97.09
  • Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 5000 mm
  • Cable Length: 9 m, 4-wire, PVC
  • Protection Classes: IP67 / IP68
  • Metal Housing
  • LED All-round Visible


Product

Manufacturer Material ID -
M12E W/30
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

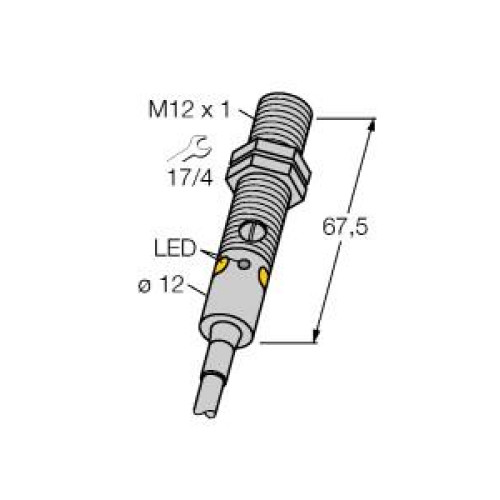

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
67.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
0.625 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Polarity free red light
Wavelength of the sensor -
660 Nanometre
Turck Banner

Availability Available to order

£97.09
