3077207

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Manufacturer's No: M12NLP W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Availability On Request

POA
  • Photoelectric Sensor with Retroreflective Sensor and Polarizing Filter
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 1500 mm
  • Cable Length: 9 m, PVC material, 4-wire
  • Protection Classes: IP67/IP68
  • Metal Housing
  • LED Indication for all-round visibility
  • Insufficient excess gain indication
  • Sensitivity adjustable via potentiometer
  • NPN switching output, changeover


Product

Manufacturer Material ID -
M12NLP W/30
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

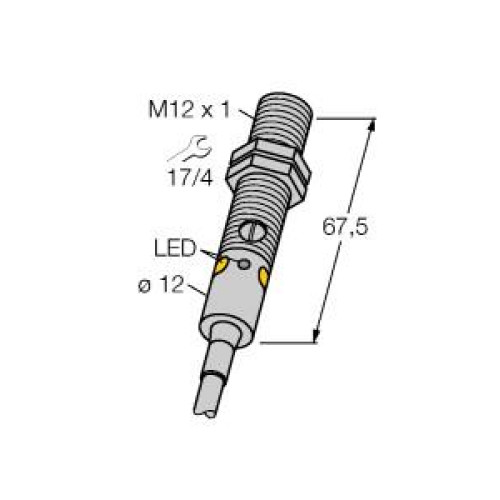

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
67.5 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
1500 Millimetre
Rated switching distance -
1500 Millimetre
Reaction time -
0.5 Millisecond
Setting procedure -
Other
Switching frequency -
1000 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
660 Nanometre
