3077211

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver)

Manufacturer's No: M12NR W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver)

Availability On Request

POA
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 5000 mm
  • Cable Length: 9 m, PVC, 4-wire
  • Protection Classes: IP67 / IP68
  • Metal Housing
  • LED Indication
  • Insufficient Excess Gain Alert
  • Adjustable Sensitivity (via potentiometer)
  • NPN Switching Output, Changeover


Product

Manufacturer Material ID -
M12NR W/30
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

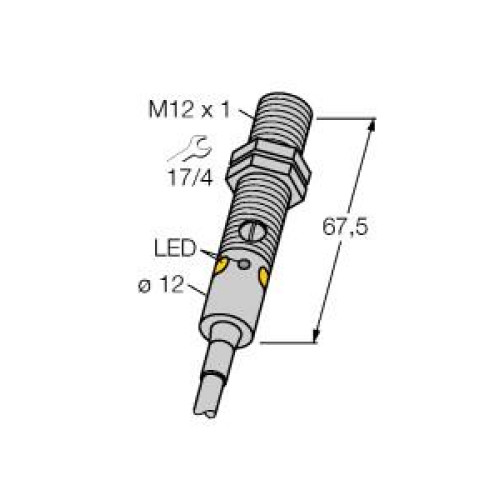

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
67.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
0.625 Millisecond
Setting procedure -
Other
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
660 Nanometre
Turck Banner

Availability On Request

POA
