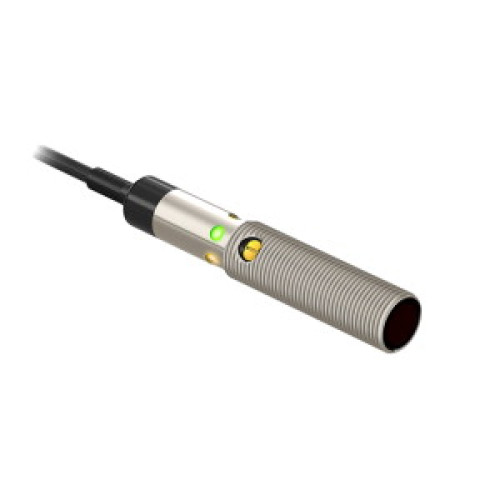

M12 Series: Retro (Red), Range: 2.5 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, 2 m (6.5 ft) Cable

Manufacturer's No: M12PLV     Manufacturer: Turck Banner
M12 Series: Retro (Red), Range: 2.5 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, 2 m (6.5 ft) Cable

Availability On Request

£117.05
  • Type: Photoelectric Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2500 mm
  • Cable Length: 2 m, PVC, 4-wire
  • Protection Classes: IP67 / IP68
  • Housing: Metal
  • LED Indicator
  • Insufficient Excess Gain Indication
  • Sensitivity Adjustable via Potentiometer
  • Output: PNP Switching, Complementary Contact


Product

Manufacturer Material ID -
M12PLV
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

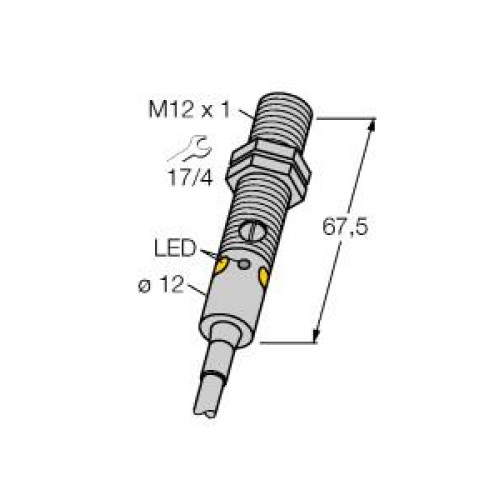

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
67.5 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2500 Millimetre
Rated switching distance -
2500 Millimetre
Reaction time -
0.5 Millisecond
Setting procedure -
Other
Switching frequency -
1000 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
660 Nanometre
