3077198

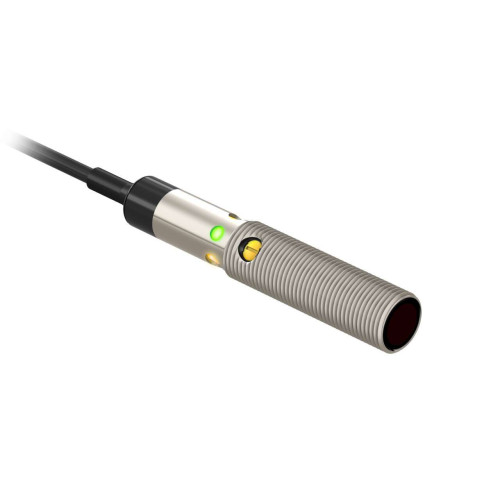

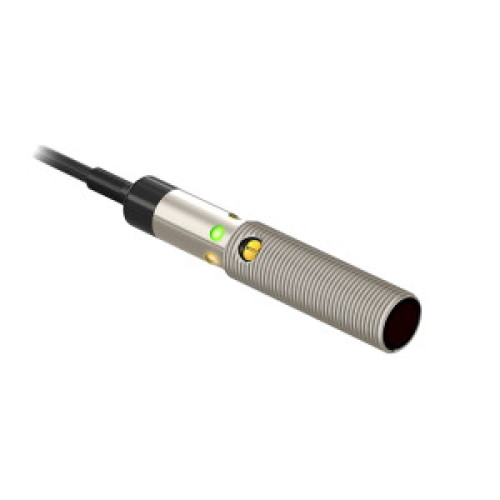

M12 Series: Receiver, Range: 5 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, 2 m (6.5 ft) Cable

Manufacturer's No: M12PR     Manufacturer: Turck Banner
M12 Series: Receiver, Range: 5 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, 2 m (6.5 ft) Cable

Availability Back Order

£96.69
  • M12 Series Receiver
  • Range: 5 meters
  • Input: 10-30 V DC
  • Output: Complementary Solid-State PNP
  • Cable Length: 2 meters (6.5 feet)


Product

Manufacturer Material ID -
M12PR
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

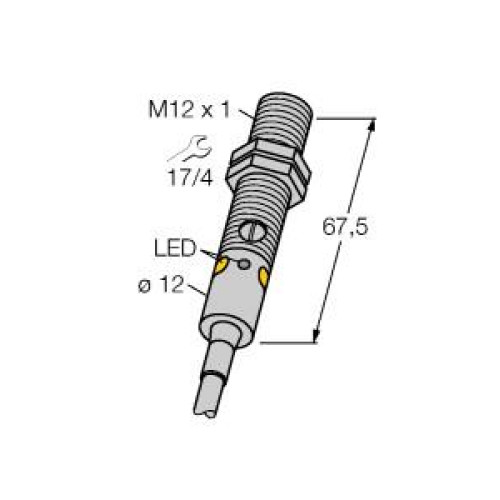

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
67.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
0.625 Millisecond
Setting procedure -
Other
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
660 Nanometre
Turck Banner

Availability Back Order

£96.69
