3077199

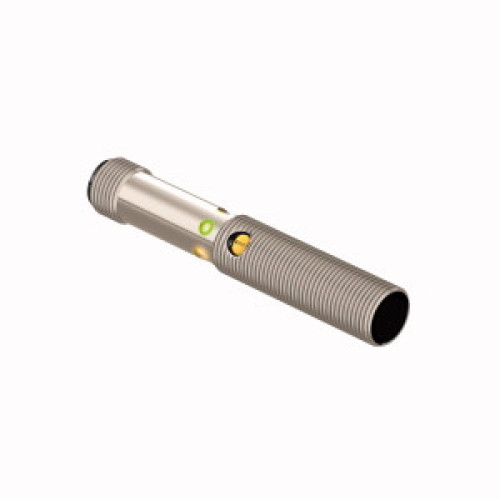

M12 Series: Receiver, Range: 5 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, M12 Integral QD

Manufacturer's No: M12PRQ8     Manufacturer: Turck Banner
M12 Series: Receiver, Range: 5 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, M12 Integral QD

Availability On Request

£106.16
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 5000 mm
  • Connector: Male M12 × 1, 4-pin
  • Protection Classes: IP67 / IP68
  • Housing: Metal
  • LED Indicator: All-round visible
  • Features: Indication of insufficient excess gain
  • Sensitivity: Adjustable via potentiometer
  • Output: PNP switching output, complementary contact


Product

Manufacturer Material ID -
M12PRQ8
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

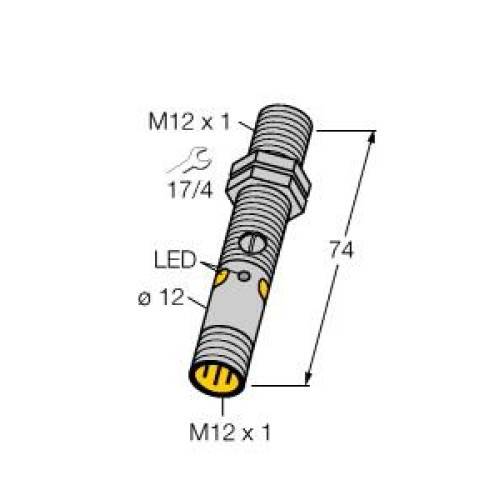

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
74 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
0.625 Millisecond
Setting procedure -
Other
Switching frequency -
500 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
660 Nanometre
