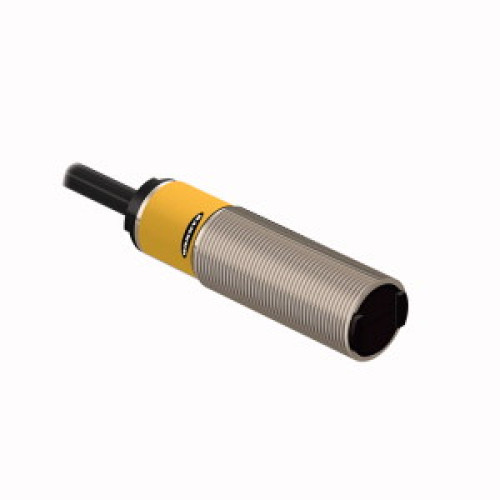

3048664

EZBEAM M18 Series: Diffuse; Range: 300 mm; Input: 1030V dc; Output: Complementary NPN; 2 m 6.5 ft cable;

Manufacturer's No: M18SN6DL
EZBEAM M18 Series: Diffuse; Range: 300 mm; Input: 1030V dc; Output: Complementary NPN; 2 m 6.5 ft cable;

Availability Back Order

£126.00
  • EZBEAM M18 Series
  • Diffuse sensing mode
  • Range: 300 mm
  • Input: 10-30V DC
  • Output: Complementary NPN
  • 2 meter (6.5 feet) cable


Product

Manufacturer Material ID -
M18SN6DL
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Metal

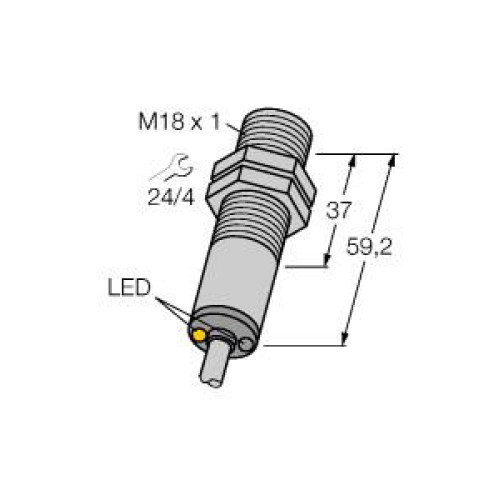

Length of sensor -
59.2 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
880 Nanometre


Availability Back Order

£126.00
