3058428

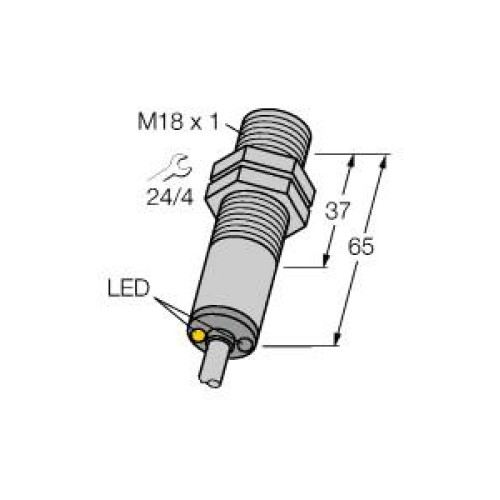

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Manufacturer's No: M18SN6FF25     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Availability On Request

POA
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 25 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature range: -40 to +70 °C
  • Metal housing
  • NPN switching output with changeover


Product

Manufacturer Material ID -
M18SN6FF25
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
65 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
25 Millimetre
Rated switching distance -
25 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
880 Nanometre
